2021 Genesis GV80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

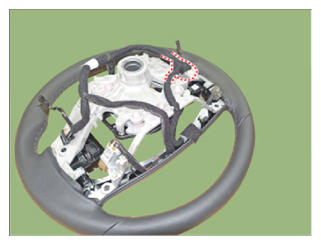

  1. Check for resistance between terminals in left switch position.
    G14723775Courtesy of HYUNDAI MOTOR AMERICA
    RESISTANCE SPECIFICATIONS (AUDIO + BLUETOOTH + VOICE)

    Switch Connector terminal Resistance (Β± 3%)
    SEEK Up 2 430 Ξ©
    SEEK Down 1.1 KΞ©
    MODE 2.11 KΞ©
    MUTE 3.11 KΞ©
    CUSTOM 3 4.61 KΞ©
    Voice 10.71 KΞ©
    SEND 40.91 KΞ©

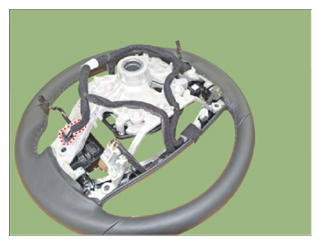

  2. Check for resistance between terminals in right switch position.
    G14723776Courtesy of HYUNDAI MOTOR AMERICA
    RESISTANCE SPECIFICATIONS (TRIP + CC + SCC + LFA)

    Switch Connector terminal
    Paddle UP 1 ~ 12
    Paddle Down
    Trip
    OK
    LFA
    RES (+)
    CANCEL (-)
    Volume (-)
    Volume (+)
    Cruise
    Smart Cruise
