2021 Genesis GV80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Disconnct the negative (-) battery terminal.

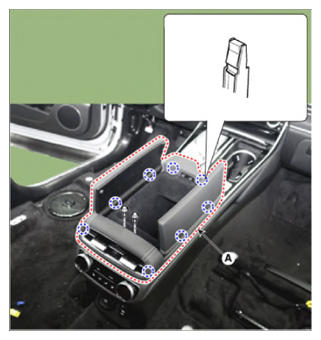

- Remove the upper console assembly (A) after loosening mounting bolts.

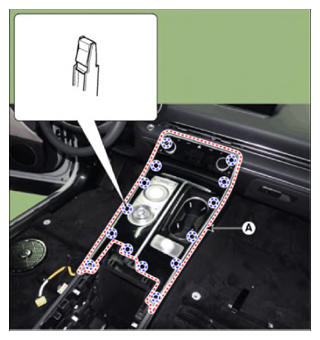

- Using a remover, remove the console upper cover (A).

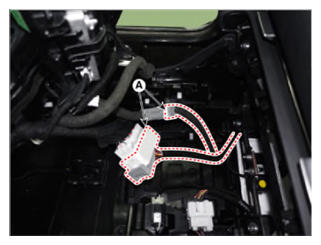

- Disconnect the console upper cover connector (A).

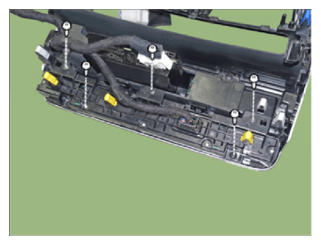

- Disconnect the keyboard connector and then remove the AVN keyboard assembly after loosening mounting screws.
