2021 Genesis G90 3.3T Premium, AWDFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Take care not to scratch the crash pad and related parts.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad side garnish assembly.
(Refer to Body - "CRASH PAD SIDE GARNISH ASSEMBLY ")
CAUTION:- When removing with the screwdriver or remover, wrap the protective tape on the tools.
- Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
- Remove the cluster fascia panel.
(Refer to Body - "CRASH PAD CLUSTER FASCIA PANEL ")

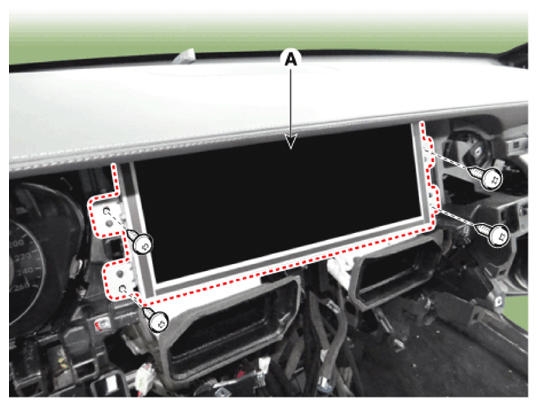

- Remove the front LED monitor after loosening the mounting screws.
