2021 Genesis G90 3.3T Premium, AWDFACTORY OEM SERVICE PROCEDURE
Front Keyboard Unit
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the floor console upper cover.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

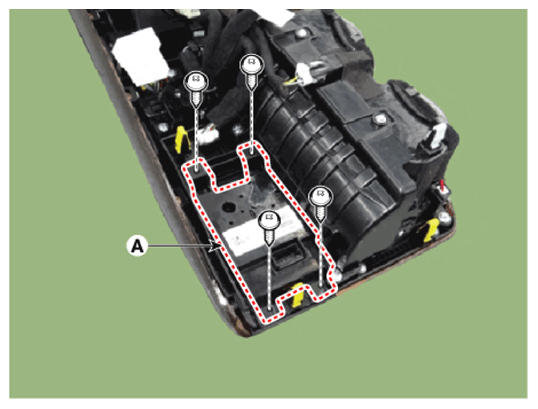

- Remove the front integrated controller (A) after loosening the mounting screws.
