2021 Genesis G90 3.3T Premium, AWDFACTORY OEM SERVICE PROCEDURE

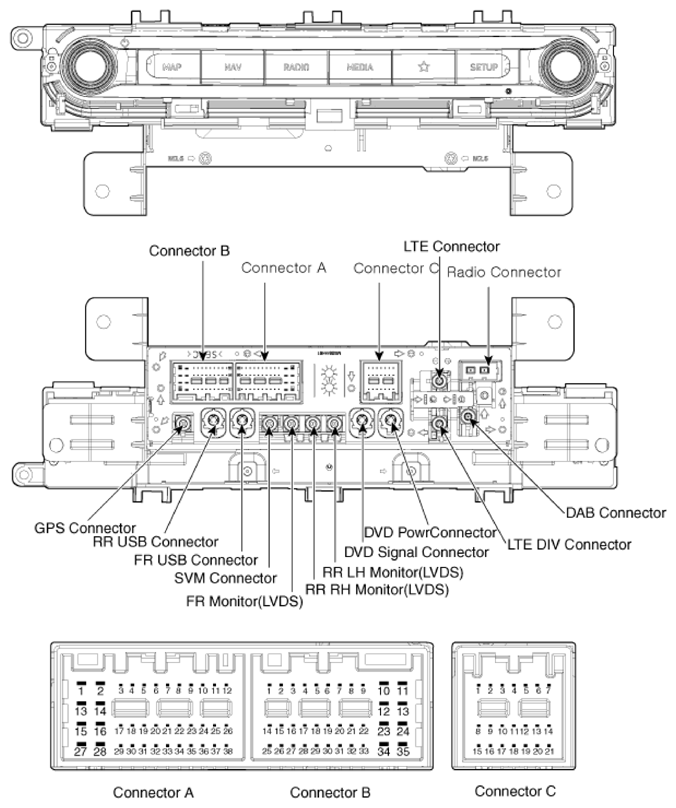

Components And Components Location: Components
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

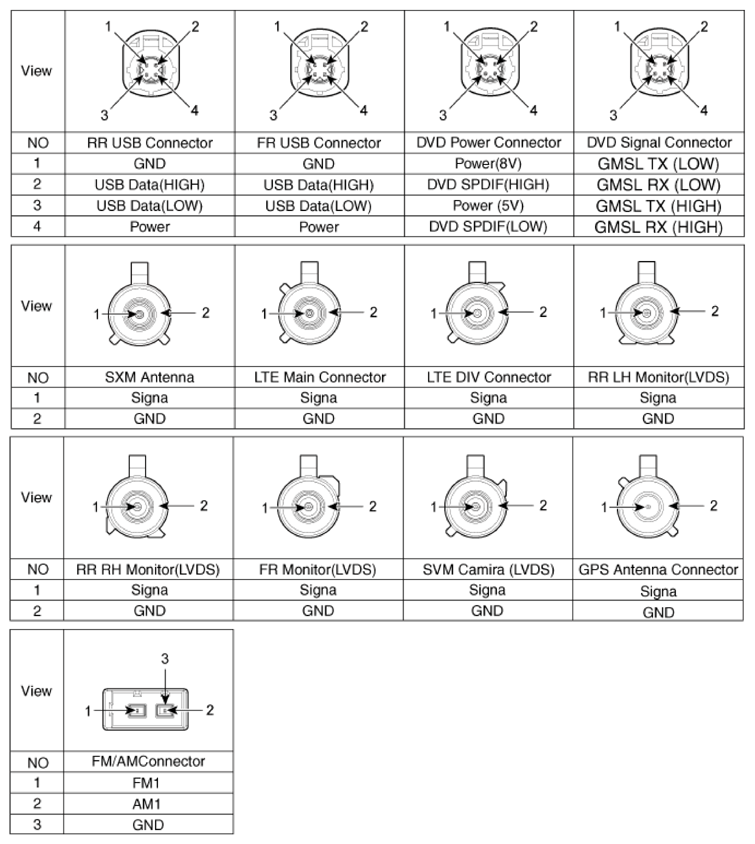

| NO | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | Mic 2 Signal (+) | - |
| 2 | - | Mic Signal (+) | I_CAN (HIGH) |
| 3 | AMP Navi Voice (+) | Mic Shield | - |
| 4 | AMP SPDIF (HIGH) | Front Monitor Detect | - |
| 5 | - | Antenna Power | - |
| 6 | - | ILL (+) | - |
| 7 | - | MM_CAN (HIGH) | - |
| 8 | - | - | - |
| 9 | - | - | I_CAN (LOW) |
| 10 | - | Battery (+) | - |
| 11 | Front USB DETECT | Battery (+) | - |
| 12 | - | GND | - |
| 13 | - | GND | - |
| 14 | - | Mic 2 Signal (-) | - |
| 15 | - | Mic Signal (-) | - |
| 16 | - | Mic2 Shield | MTS Key |
| 17 | AMP Navi Voice (-) | - | MTS Key GND |
| 18 | AMP SPDIF (LOW) | - | - |
| 19 | AMP SPDIF GND | ILL (-) | - |
| 20 | - | MM_CAN ( ) | - |
| 21 | - | - | - |
| 22 | - | ACC | |
| 23 | - | - | |
| 24 | - | Front Monitor Power | |
| 25 | - | Back Up Signal | |
| 26 | - | - | |
| 27 | - | - | |
| 28 | - | - | |
| 29 | - | - | |
| 30 | - | - | |
| 31 | - | - | |
| 32 | SVM DETECT | - | |
| 33 | - | IGN 1 | |
| 34 | - | - | |
| 35 | - | Front Monitor GND | |
| 36 | - | ||
| 37 | - | ||
| 38 | Speed |
