2021 Genesis G90 3.3T Premium, AWDFACTORY OEM SERVICE PROCEDURE
Description And Operation: Description

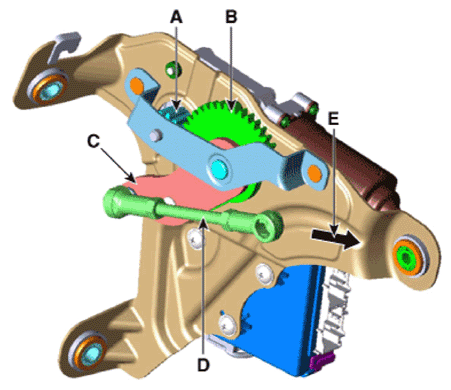

- Power trunk drive unit (Trunk open)
- The trunk open switch operates. (Trunk outside handle switch, Crash pad switch, SMK trunk open button)
- The power trunk motor operates and motor gear rotates (A).
- The sector gear rotates (B).
- The drive arm connected to sector gear rotates (C).
- The push rod operates (D) in the direction of the arrow.
- The end of the push rod pushes up the trunk (E).
- Power trunk drive unit (Trunk close)
- The trunk close switch operates.
- The power trunk motor operates and motor gear rotates (A).
- The sector gear rotates (B).
- The drive arm connected to the sector gear rotates (C).
- The push rod operates (D) in the direction of the arrow.
- The end of the push rod pushes up the trunk (E).
