2021 Genesis G80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Disassembly

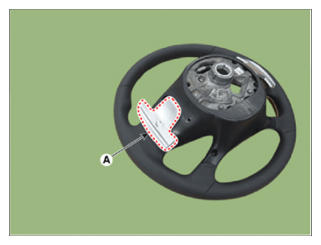

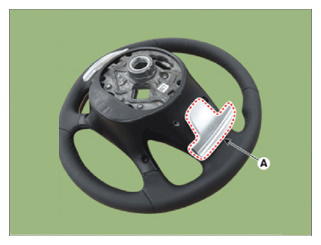

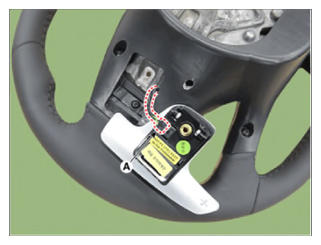

- Loosen the screw and then remove the paddle shift switch (A).

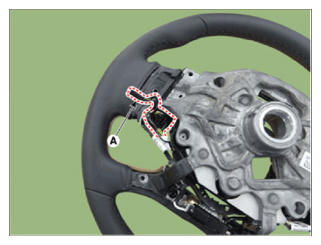

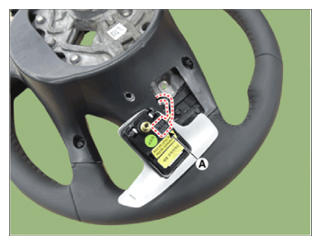

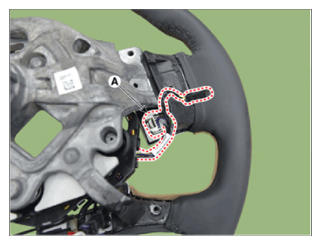

- Disconnect the paddle shift switch connector (A).

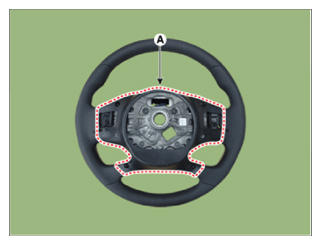

- Loosen the screw and then remove the lower cover (A).
- Disconnect the remote control switch connector (A).

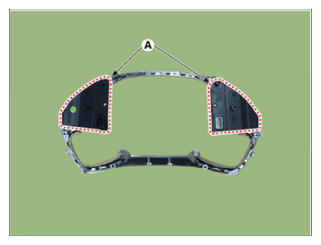

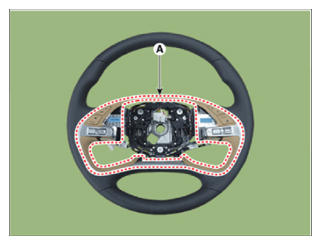

- Loosen the screw and then remove the switch bezel (A).
- Loosen the screw and then remove the remote control switch (A).
- Disconnect the ground connector (A).

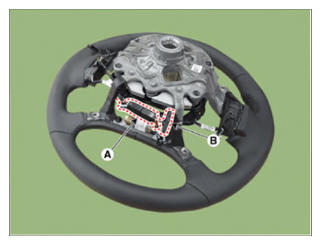

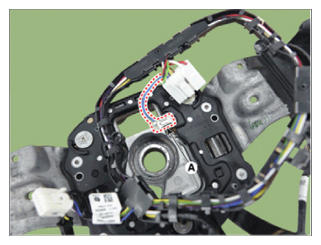

- Disconnect the heated steering wheel connector (A) and haptic motor connector (B) and then remove the wiring.

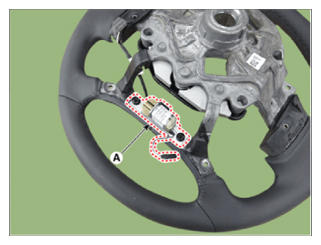

- Loosen the screw and then remove the haptic motor (A).

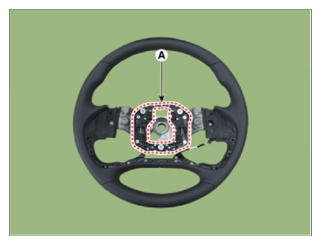

- Loosen the mounting bolts and then remove the horn plate (A).
- Reassembly in the reverse order of disassembly.
