2021 Genesis G80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE

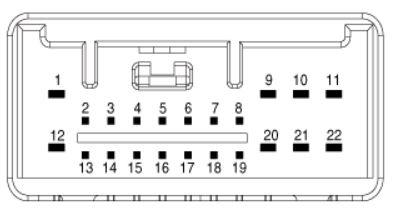

Terminal Function
| Pin No | Description |
|---|---|
| 1 | B + |
| 2 | Tilt sensor input |
| 3 | Tele sensor input |
| 4 | - |
| 5 | - |
| 6 | B_CAN High |
| 7 | B_CAN Low |
| 8 | haptic motor down output |
| 9 | haptic motor up output |
| 10 | Battery + |
| 11 | Tilt motor down output |
| 12 | Ignition 1 |
| 13 | Position sensor power output |
| 14 | - |
| 15 | Tilt down switch input |
| 16 | - |
| 17 | - |
| 18 | Sensor ground |
| 19 | Ground |
| 20 | Ground power |
| 21 | Tele motor forward direction output |
| 22 | Tele motor backward direction output |
