2021 Genesis G80 2.5T Advanced, AWD
Steering Column Module (SCM) switch
2021 Genesis G80 2.5T Advanced, AWDSECTION Steering Column Module (SCM) switch
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
- Disconnect the steering column module connector.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

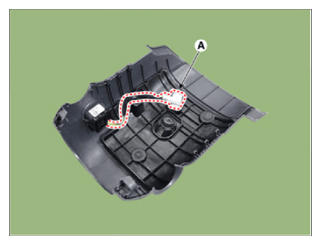

- Disconnect the steering module switch connector and clip (A).
- Using the driver, remove the steering column module switch (A).
- Install in the reverse order of removal.
