2021 Genesis G80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE

Components And Components Location: Components

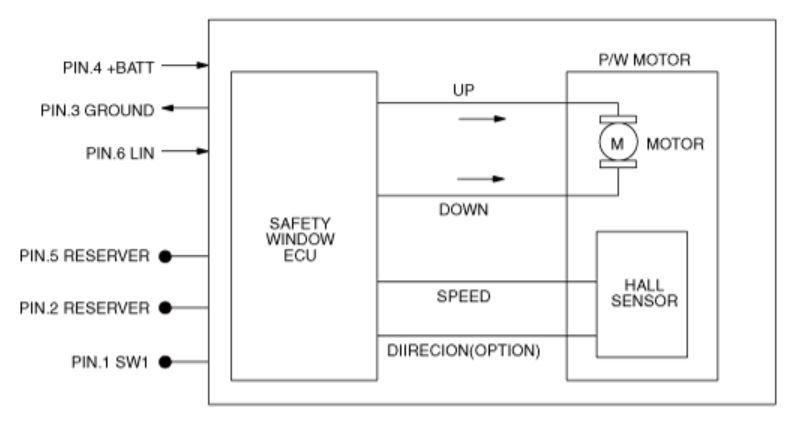

G15554705Courtesy of HYUNDAI MOTOR AMERICA
G14932220Courtesy of HYUNDAI MOTOR AMERICA

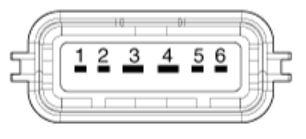

Connector A
G14932219Courtesy of HYUNDAI MOTOR AMERICA
Pin Descriptor
1 Switch 1
2 -
3 Ground
4 Battery (+)
5 -
6 LIN
