2021 Genesis G80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE

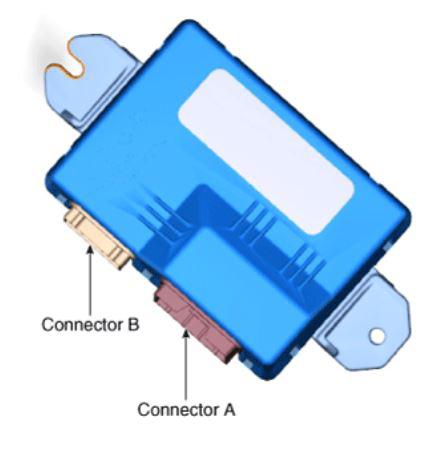

Components And Components Location: Components

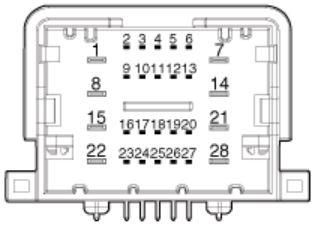

| Connector A | Pin | Description |
|---|---|---|
| 1 | Cinching motor (+) | |
| 2 | Trunk lid switch ILL | |
| 3 | - | |
| 4 | Buzzer | |
| 5 | B-GAN Low | |
| 6 | B-CAN High | |
| 7 | - | |
| 8 | Cinching motor (-) | |
| 9 | - | |
| 10 | - | |
| 11 | Trunk lid lock switch | |
| 12 | - | |
| 13 | - | |
| 14 | - | |
| 15 | Motor power | |
| 16 | PAWL switch | |
| 17 | Catch switch | |
| 18 | Cancel lever switch | |
| 19 | - | |
| 20 | Latch switch ground | |
| 21 | System ground | |
| 22 | System power | |
| 23 | Trunk open/dose switch | |
| 24 | Trunk inner switch | |
| 25 | Home position sensor | |
| 26 | - | |
| 27 | - | |
| 28 | Motor power ground |
| Connector B | Pin | Description |
|---|---|---|
| 1 | - | |
| 2 | - | |
| 3 | Drive unit LH shield ground | |
| 4 | - | |
| 5 | - | |
| 6 | Hall sensor LH power | |
| 7 | Drive unit motor LH close (+) | |
| 8 | - | |
| 9 | - | |
| 10 | - | |
| 11 | Hall sensor LH ground | |
| 12 | Mall sensor 1 LH | |
| 13 | Hall sensor 2 LH | |
| 14 | Drive unit motor LH close (+) |
