2021 Genesis G80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

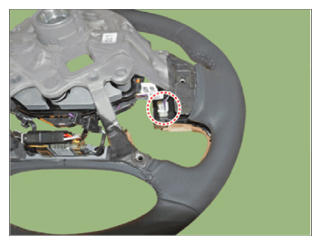

  1. Check for resistance between terminals in each switch position (LH).
    G15549975Courtesy of HYUNDAI MOTOR AMERICA

    [Audio + Bluetooth + Voice]

    SWITCH CONNECTOR TERMINAL REFERENCE

    Switch Connector Terminal Resistance (± 3%)
    MUTE 2-6 1.5 kΩ
    SEEK UP 3.7 kΩ
    SEEK DOWN 11.9 kΩ
    MODE 33.9 kΩ
    VOICE 3-6 1.5 kΩ
    CUSTOM 3.7 kΩ
    SEND 11.9 kΩ

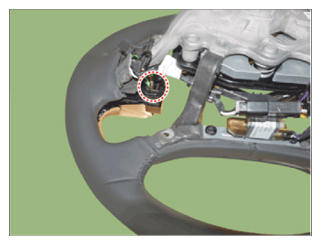

  2. Check for resistance between terminals in each switch position (RH).
    G15549976Courtesy of HYUNDAI MOTOR AMERICA

    [Trip + Cruise + SCC + LFA] 7

    SWITCH CONNECTOR TERMINAL REFERENCE

    Switch Connector Terminal
    Paddle UP 1 - 12
    Paddle Down
    Trip
    OK
    LFA
    RES (+)
    CANCEL (-)
    Volume (-)
    Volume (+)
    Cruise
    Smart Cruise
Chapter Navigation
