2021 Genesis G80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

CAUTION:

Take care not to scratch the crash pad and related parts.
When removing with the screwdriver or remover, wrap the protective tape on the tools.
Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.

Disconnect the negative (-) battery terminal.

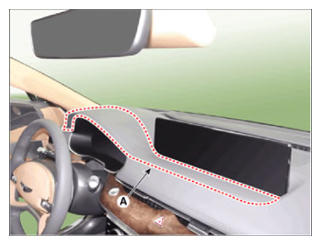

Using a remover and remove the cluster fascia upper garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA

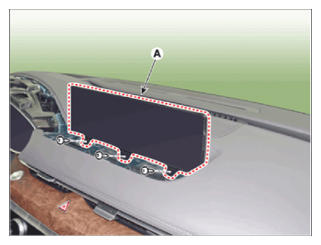

Loosen the mounting screws and remove the front monitor (A).

Courtesy of HYUNDAI MOTOR AMERICA

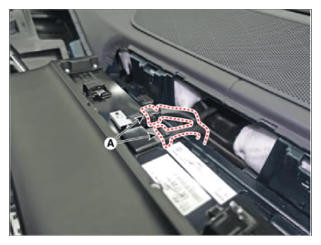

Disconnect the front monitor connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA
