2021 Genesis G80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE

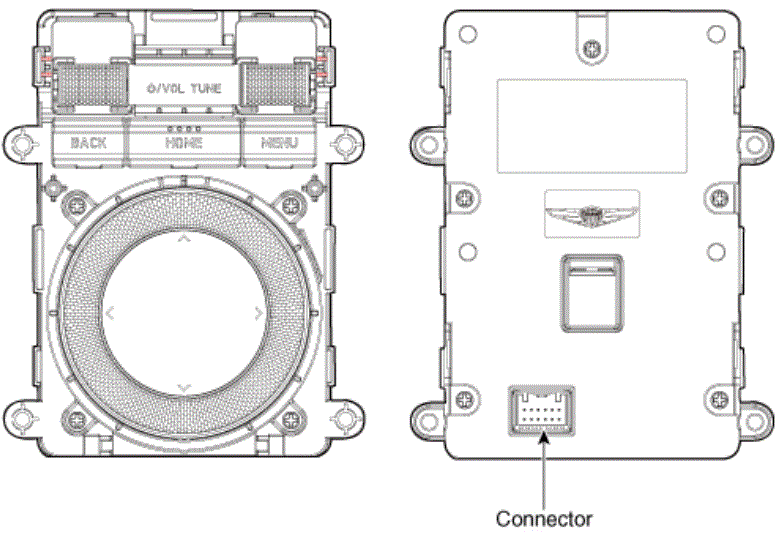

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

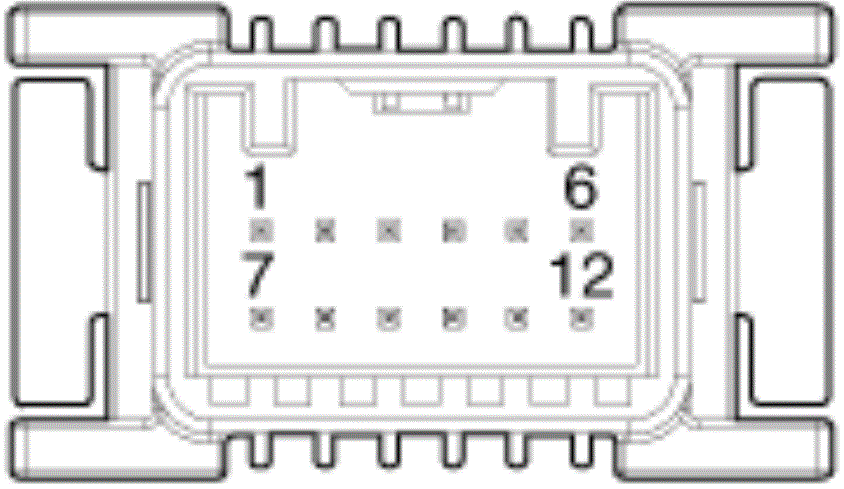

Connector	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Ground
	2	ILL (-)
	3	-
	4	ILL (+)
	5	ACC
	6	-
	7	-
	8	-
	9	Battery (+)
	10	-
	11	Local_HS CAN (High)
	12	Local_HS CAN (Low)
