2021 Genesis G80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE

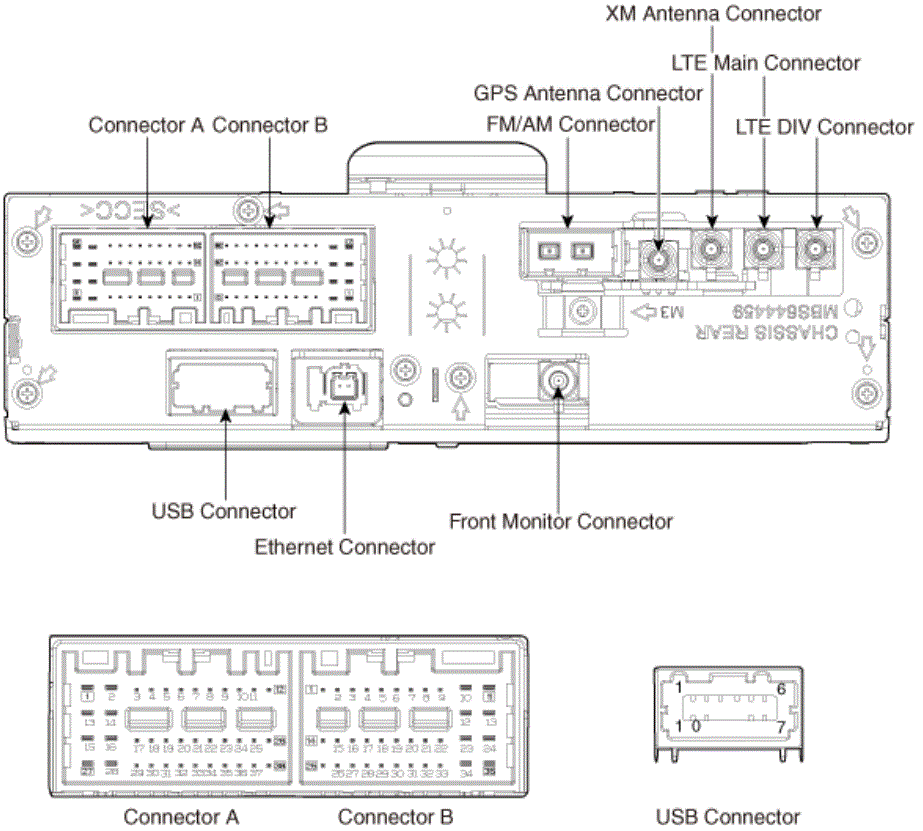

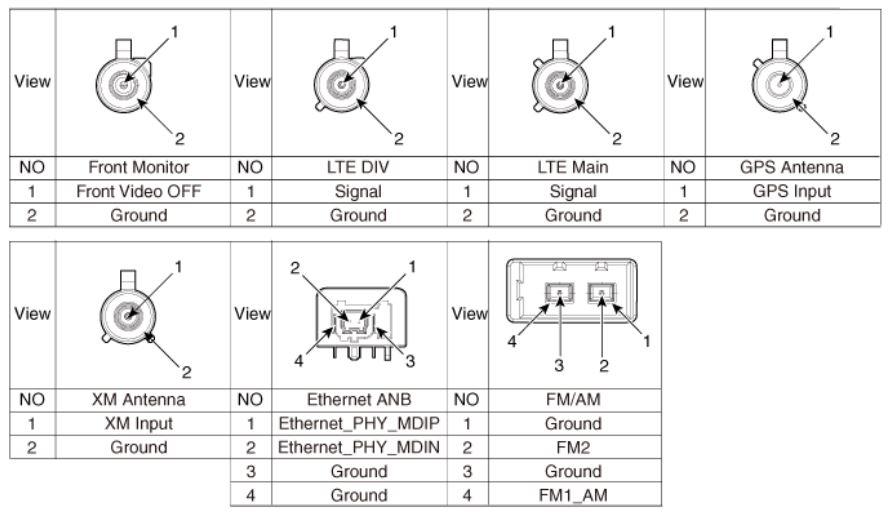

Components And Components Location: Components
| Pin NO | Connector A | Connector B | USB Connector |
|---|---|---|---|
| 1 | - | MIC Signal 2 (+) | USB VCC |
| 2 | - | MIC Signal 1 (+) | USB Data TX Ground |
| 3 | AMP Navigation Voice (+) | MIC 1 Shield | USB HSD (Low) |
| 4 | AMP_SPDIF (HI) | SVM DETECT (SVM)/- (RVM) | USB HSD (High) |
| 5 | RESET | - | USB Data RX Ground |
| 6 | Camera Power | Rheostat (+) | USB Ground |
| 7 | - | - | USB Data RX (Low) |
| 8 | SVM Switch | Local HS CAN High | USB Data RX (High) |
| 9 | - | - | USB Data TX (Low) |
| 10 | - | Battery (+) | USB Data TX (High) |
| 11 | ICU_WAKE | Battery (+) | - |
| 12 | - | Ground | - |
| 13 | - | Ground | - |
| 14 | - | MIC Signal 2 (-) | - |
| 15 | - | MIC Signal 1 (-) | - |
| 16 | - | MIC 2 Shield | - |
| 17 | AMP Navigation Voice (-) | - | - |
| 18 | AMP_SPDIF (LOW) | - | - |
| 19 | AMP_SPDIF (Ground) | Rheostat (-) | - |
| 20 | Camera Power Ground | - | - |
| 21 | - | Local HS CAN Low | - |
| 22 | ACC | - | |
| 23 | Airbag | Keyboard Power | - |
| 24 | Front Monitor Power | - | |
| 25 | MTS_KEY | Reverse | - |
| 26 | MTS_KEY Ground | - | - |
| 27 | - | - | - |
| 28 | - | - | - |
| 29 | - | - | - |
| 30 | - | - | - |
| 31 | - | - | - |
| 32 | - | - | - |
| 33 | - | IGN 1 | - |
| 34 | - | Keyboard Ground | - |
| 35 | USB_Headset (HIGH) | Front Monitor Ground | - |
| 36 | USB_Headset (LOW) | - | - |
| 37 | - | - | |
| 38 | Vehicle Speed | - |
