2021 Genesis G70 2.0T Elite, AWDFACTORY OEM SERVICE PROCEDURE

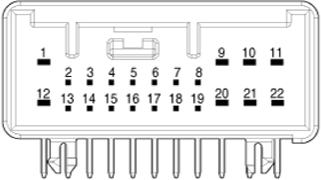

Terminal Function
| Pin No | Description | Pin No | Description |
|---|---|---|---|
| 1 | B + | 12 | IG 1 |
| 2 | Tilt sensor input | 13 | Position sensor power output |
| 3 | Tele sensor input | 14 | - |
| 4 | Tilt up switch input | 15 | Tilt down switch input |
| 5 | Tele sensor input | 16 | Tele backward direction switch input |
| 6 | CAN High | 17 | - |
| 7 | CAN Low | 18 | Ground sensor |
| 8 | - | 19 | Ground |
| 9 | Tilt motor up output | 20 | Ground power |
| 10 | Battery + | 21 | Tele motor forward direction output |
| 11 | Tilt motor down output | 22 | Tele motor backward direction output |
