Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")
- Remove the delivery pipe & injector assembly.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")

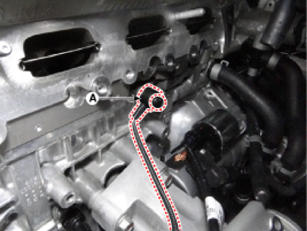

- Remove the knock sensor (A) after loosening the mounting bolt from the cylinder block.
Knock sensor installation bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
