2020 Genesis G90 3.3T Premium, AWDFACTORY OEM SERVICE PROCEDURE
Monitor GDS Data
- IG KEY "ON" & Engine "OFF".
- Erase DTC after connecting GDS.

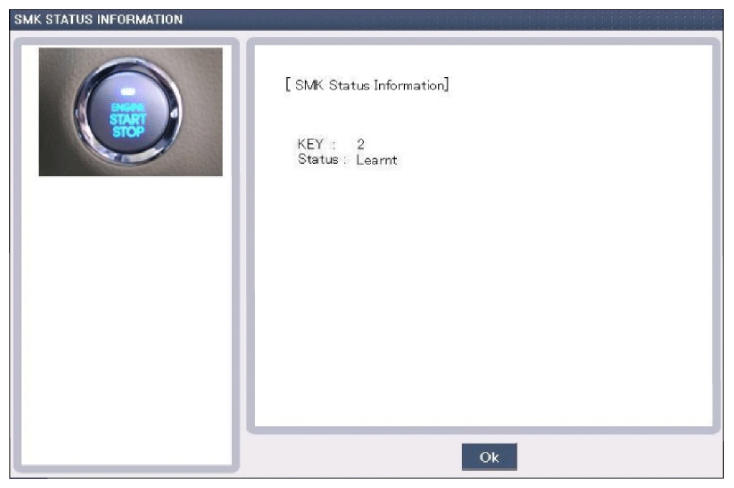

- Check Smart key status in "Vehicle S/W Management", if DTC is retrieved.
- Is the Smart key ECM learnt status?
YES
- Fault is intermittent caused by poor contact in IBU (SMK + BCM + TPMS) and/or ECM's connector or was repaired and IBU (SMK + BCM + TPMS) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
