2024 GMC Yukon Denali, 6.2L Eng VIN L, 4WDFACTORY OEM SERVICE PROCEDURE
K5 Automatic Level Control Module

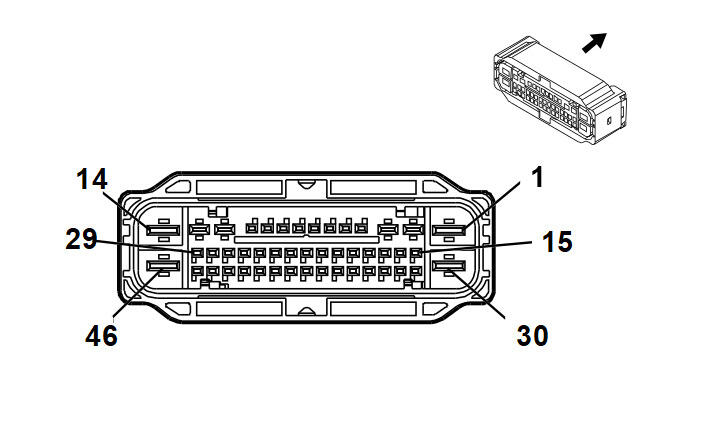

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 13575368 | J-35616-35 (VT) | J-38125-36 |
| II | 19370818 | J-35616-12 (BU) | J-38125-215A |
| III | 84634921 | J-35616-42 (RD) | J-38125-212 |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 3 | RD / BU | 7640 | Battery Positive Voltage | III | - |
| 2 | 0.75 | RD / BN | 2940 | Battery Positive Voltage | I | - |
| 3 - 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.5 | WH / GN | 320 | Vehicle Level Control Exhaust Solenoid Valve Control | II | - |
| 8 | - | - | - | Not Occupied | - | - |
| 9 | 0.5 | WH / BU | 3261 | Vehicle Level Control Exhaust Solenoid Valve Control | II | - |
| 10 | 0.5 | BU | 4987 | AUTOSAR CAN Bus [+] 1 Serial Data | II | - |
| 11 | 0.5 | WH | 4986 | AUTOSAR CAN Bus [-] 1 Serial Data | II | - |
| 12 | - | - | - | Not Occupied | - | - |
| 13 | 0.75 | BK | 2150 | Ground | I | - |
| 14 | 3 | BK | 2150 | Ground | III | - |
| 15 - 17 | - | - | - | Not Occupied | - | - |
| 18 | 0.5 | BK / BU | 1206 | Left Front Suspension Position Sensor Low Reference | II | - |
| 19 | 0.5 | BN / WH | 1207 | Left Front Suspension Position Sensor Signal | II | - |
| 20 | 0.5 | BU / RD | 1205 | Left Front Suspension Position Sensor Voltage Reference | II | - |
| 21 | 0.5 | YE / RD | 1208 | Left Rear Suspension Position Sensor Voltage Reference | II | - |
| 22 | 0.5 | GN / WH | 1210 | Left Rear Suspension Position Sensor Signal | II | - |
| 23 | 0.5 | BK / GN | 1209 | Left Rear Suspension Position Sensor Low Reference | II | - |
| 24 | 0.5 | BU | 4987 | AUTOSAR CAN Bus [+] 1 Serial Data | II | - |
| 25 | 0.5 | WH | 4986 | AUTOSAR CAN Bus [-] 1 Serial Data | II | - |
| 26 - 29 | - | - | - | Not Occupied | - | - |
| 30 | 2.5 | GN / BN | 2357 | Vehicle Level Control Compressor Motor Control | III | - |
| 31 - 33 | - | - | - | Not Occupied | - | - |
| 34 | 0.5 | BK / GY | 1212 | Right Front Suspension Position Sensor Low Reference | II | - |
| 35 | 0.5 | YE / WH | 1213 | Right Front Suspension Position Sensor Signal | II | - |
| 36 | 0.5 | BN / RD | 1211 | Right Front Suspension Position Sensor Voltage Reference | II | - |
| 37 | 0.5 | GN / RD | 1214 | Right Rear Suspension Position Sensor Voltage Reference | II | - |
| 38 | 0.5 | GN / GY | 1216 | Right Rear Suspension Position Sensor Signal | II | - |
| 39 | 0.5 | BK / YE | 1215 | Right Rear Suspension Position Sensor Low Reference | II | - |
| 40 - 45 | - | - | - | Not Occupied | - | - |
| 46 | 2.5 | GY / BN | 2693 | Leveling Compressor Motor Low Reference | III | - |
