2024 GMC Terrain SLE, 4WDFACTORY OEM SERVICE PROCEDURE

T1 Accessory DC/AC Power Inverter Module (KI7)

GM4036948Courtesy of GENERAL MOTORS COMPANY

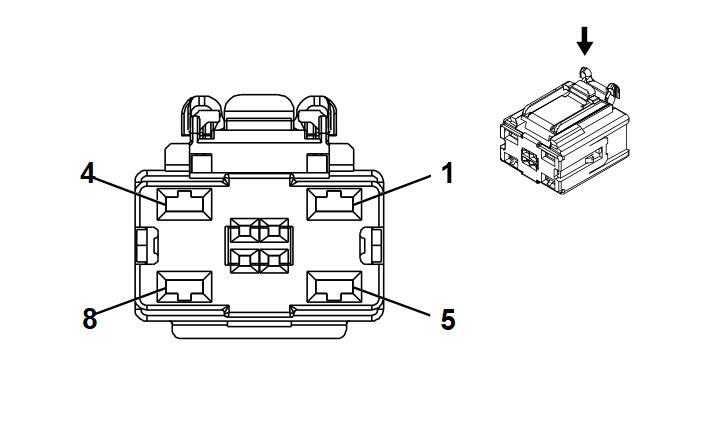

Connector Part Information
  • Harness Type: Front Floor Console Wiring Harness
  • OEM Connector: 13591333
  • Service Connector: Service by Harness - See the appropriate Part Information
  • Description: 8-Way F 0.64, 2.8 Series (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I Not required J-35616-4A (PU) No Tool Required
II Not required J-35616-64B (L-BU) No Tool Required
Pin Size Color Circuit Function Terminal Type ID Option
1 0.75 BU 6865 230V AC Phase B I KI7
2 - 3 - - - Not Occupied - -
4 1.5 RD / WH 2040 Battery Positive Voltage I -
5 0.75 BN 686 230 VAC Outlet Phase A I KI7
6 0.35 BU / BN 6807 DC/AC Inverter Control II -
7 - - - Not Occupied - -
8 1.5 BK 2250 Ground I -
