2024 GMC Sierra EVFACTORY OEM SERVICE PROCEDURE
Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

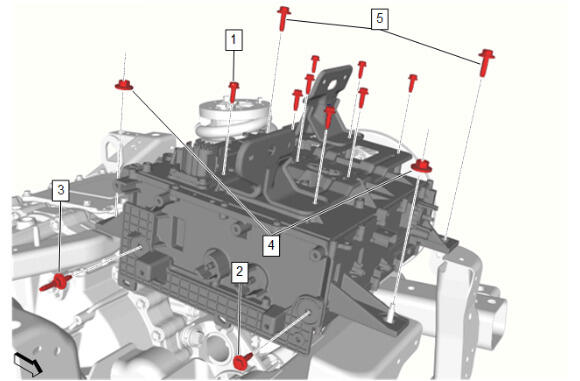

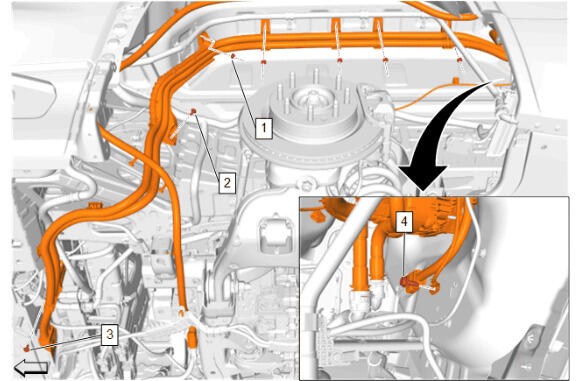

Battery Charger Bolts and Nuts
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Bracket Bolt [8x] | - | - | 9 N.m (80 lb in) | Battery Charger Replacement |
| 2 | Chassis Rear Wiring Harness Bracket Bolt | - | - | 9 N.m (80 lb in) | Battery Charger Replacement |
| 3 | Chassis Rear Wiring Harness Bracket Bolt | - | - | 9 N.m (80 lb in) | Battery Charger Replacement |
| 4 | Drive Motor Power Distribution Control Module Nut [2x] | - | - | 22 N.m (16 lb ft) | Battery Charger Replacement |
| 5 | Drive Motor Power Distribution Control Module Bolt [2x] | - | - | 22 N.m (16 lb ft) | Battery Charger Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.
Battery Charger Control Module 2 Bolts @ Front Drive Motor Battery Charger Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Bolt [3x] | - | - | 9 N.m (80 lb in) | Battery Charger Replacement - Battery Charger Control Module 2 |
| 2 | Drive Motor Battery Charger Ground Bolt [2x] | - | - | 9 N.m (80 lb in) | Battery Charger Replacement - Battery Charger Control Module 2 |
NOTE:
Callout items in the following chart represent components shown in graphic above.

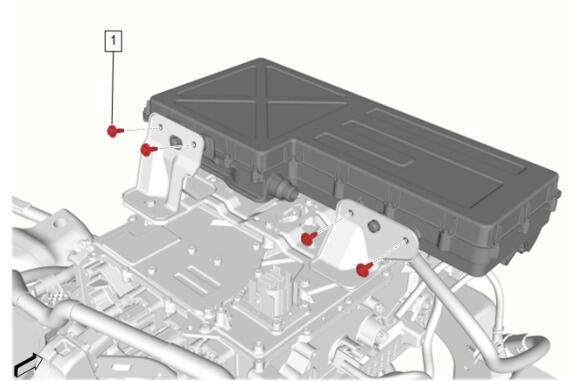

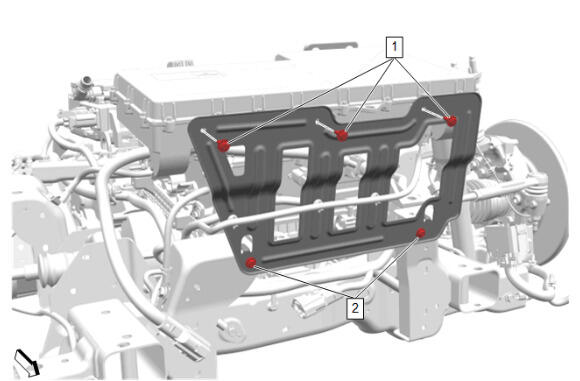

Battery Charger Control Module 2 Bolts @ Rear Drive Motor Battery Charger Brackets
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Bolt [4x] | - | - | 9 N.m (80 lb in) | Battery Charger Replacement - Battery Charger Control Module 2 |
NOTE:
Callout items in the following chart represent components shown in graphic above.

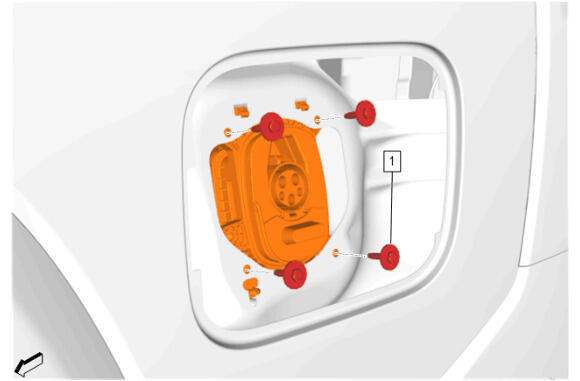

Battery Charger Coupler Bolts @ Charge Port Housing
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Receptacle Bolt [4x] | - | - | 9 N.m (80 lb in) | Battery Charger Coupler Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.
Battery Charger Coupler Bolts and Nuts @ Wheelhouse Opening
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Receptacle Nut [5x] | - | - | 9 N.m (80 lb in) | Battery Charger Coupler Replacement |
| 2 | Drive Motor Battery Charger Receptacle Bolt | - | - | 9 N.m (80 lb in) | Battery Charger Coupler Replacement |
| 3 | Drive Motor Battery Charger Bolt | - | - | 9 N.m (80 lb in) | Battery Charger Coupler Replacement |
| 4 | Drive Motor Battery Charger Receptacle Bolt | - | - | 22 N.m (16 lb ft) | Battery Charger Coupler Replacement |
