2024 GMC Canyon AT4XFACTORY OEM SERVICE PROCEDURE

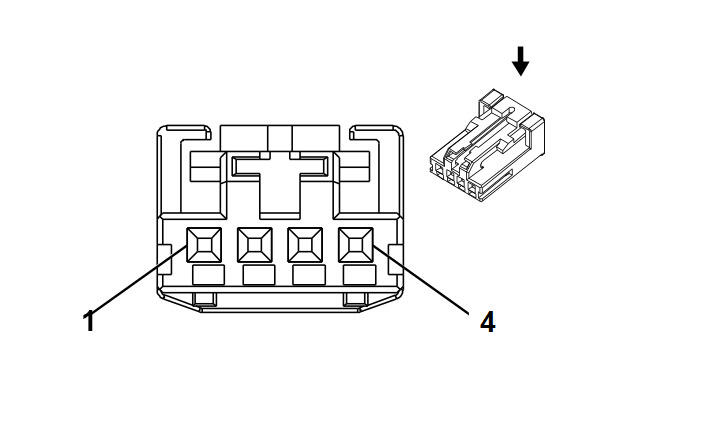

K77 Remote Function Actuator Module
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-64B (L-BU) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | RD / VT | 1640 | Battery Positive Voltage | I | - |
| 2 | 0.35 | GN / YE | 2862 | Body Control Module LIN Bus 16 | I | - |
| 3 | - | - | - | Not Occupied | - | - |
| 4 | 0.35 | BK / WH | 451 | Signal Ground | I | - |
