2024 GMC Canyon AT4XFACTORY OEM SERVICE PROCEDURE

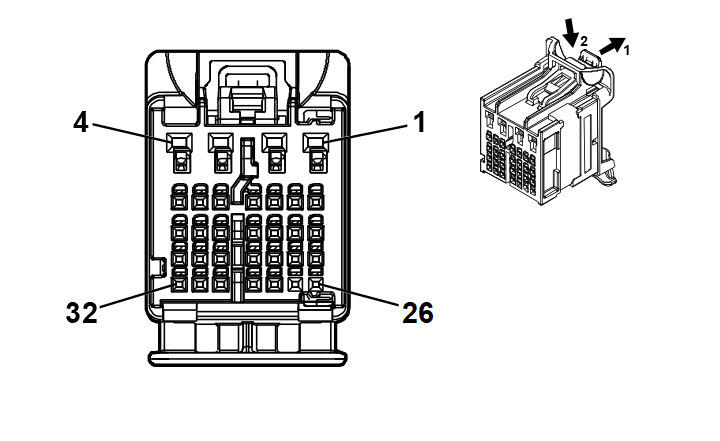

K9 Body Control Module X7
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 19370262 | EL-35616-58 (BK) | EL-38125-58 |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 - 18 | - | - | - | Not Occupied | - | - |
| 19 | 0.35 | GN / VT | 2857 | Body Control Module LIN Bus 11 | I | - |
| 20 - 29 | - | - | - | Not Occupied | - | - |
| 30 | 0.35 | BU / YE | 7176 | All Windows Open Switch Signal | I | - |
| 31 - 32 | - | - | - | Not Occupied | - | - |
