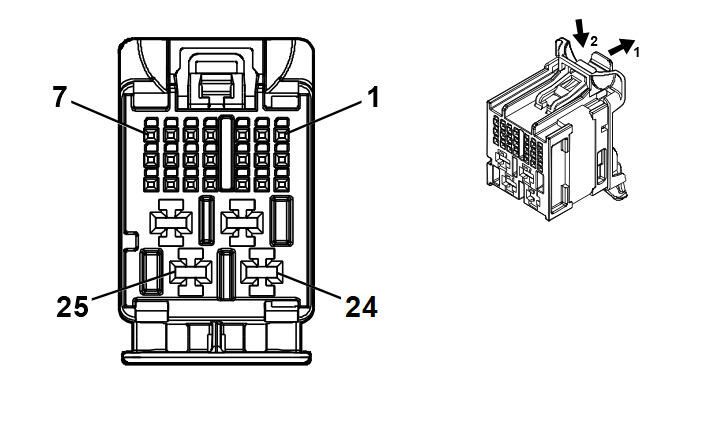

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19370262	EL-35616-58 (BK)	EL-38125-58
II	87814662	J-35616-35 (VT)	J-38125-557

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	BN / BK	3552	Interior Passive Entry Antenna 1 High Signal	I	-
2	0.35	WH	3553	Interior Passive Entry Antenna 1 Low Signal	I	-
3	0.35	BK / VT	1449	Steering Wheel Resistor Ladder Low Reference	I	-
4	-	-	-	Not Occupied	-	-
5	0.35	GN / VT	5199	Run/Crank Relay Coil Control	I	-
6	-	-	-	Not Occupied	-	-
7	0.35	BN / BK	4996	Immobilizer Antenna Signal [+]	I	-
8 - 9	-	-	-	Not Occupied	-	-
10	0.35	GY / GN	4083	Retained Accessory Power Relay 2 Coil Control	I	-
11	0.35	GY / GN	328	Interior Lamp Defeat Switch Signal	I	-
12	-	-	-	Not Occupied	-	-
13	0.35	GY	156	Courtesy Lamp Switch Signal	I	-
14	0.35	WH / GY	4997	Immobilizer Antenna Low Signal	I	-
15	-	-	-	Not Occupied	-	-
16	0.35	GN / WH	4115	Body Control Module LIN Bus 5	I	-
17 - 18	-	-	-	Not Occupied	-	-
19	0.35	BU / GN	4103	AUTOSAR CAN Bus [+] 9 Serial Data	I	-
20	0.35	WH / GN	4102	AUTOSAR CAN Bus [-] 9 Serial Data	I	-
21	0.35	WH	6816	Indicator Dimming Control	I	-
22	0.75	RD / WH	2740	Battery Positive Voltage	II	-
23	2	RD / BU	2540	Battery Positive Voltage	II	-
24	2	BK	2050	Ground	II	-
25	2	BK	2050	Ground	II	-
