2024 GMC Acadia Elevation, FWDFACTORY OEM SERVICE PROCEDURE
K182 Parking Assist Control Module X3

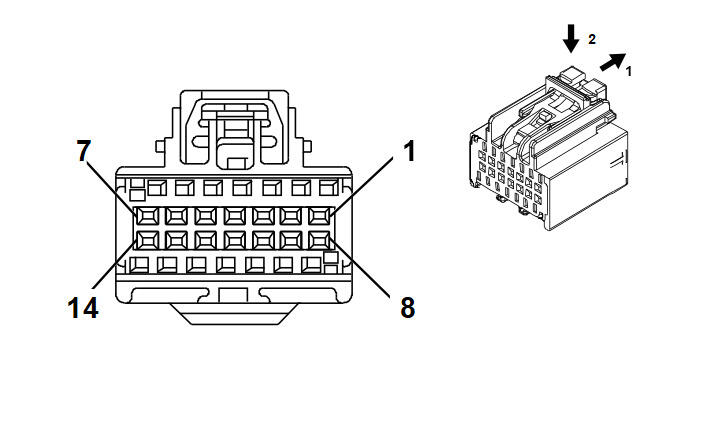

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 19303553 | J-35616-64B (L-BU) | J-38125-215A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | WH / GY | 4104 | AUTOSAR CAN Bus [-] 8 Serial Data | I | UKL+UKZ |
| 2 | 0.35 | BU / GY | 4105 | AUTOSAR CAN Bus [+] 8 Serial Data | I | UKL+UKZ |
| 3 | - | - | - | Not Occupied | - | - |
| 4 | 0.35 | GY | 3154 | Left Front Advanced Parking Assist Side Object Sensor Signal | I | UKZ |
| 5 | 0.35 | YE / GY | 5216 | Left Front Middle Parking Assist Sensor | I | UKZ |
| 6 | 0.35 | WH / GY | 5217 | Right Front Outer Parking Assist Sensor | I | UKZ |
| 7 | 0.5 | BN | 6581 | Front Parking Assist Display Control | I | UKZ |
| 8 | 0.35 | WH / GY | 4104 | AUTOSAR CAN Bus [-] 8 Serial Data | I | UKL+UKZ |
| 9 | 0.35 | BU / GY | 4105 | AUTOSAR CAN Bus [+] 8 Serial Data | I | UKL+UKZ |
| 10 | - | - | - | Not Occupied | - | - |
| 11 | 0.35 | VT / WH | 5215 | Left Front Outer Parking Assist Sensor | I | UKZ |
| 12 | 0.35 | VT / GY | 5218 | Right Front Middle Parking Assist Sensor | I | UKZ |
| 13 | 0.35 | GN | 3155 | Right Front Advanced Parking Assist Side Object Sensor Signal | I | UKZ |
| 14 | 0.5 | BK / BU | 5214 | Front Parking Assist Sensor Low Reference | I | UKZ |
