Installation Procedure

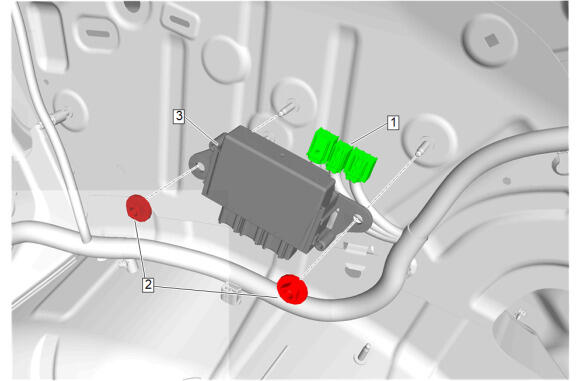

Parking Assist Control Module (3) - Install
- Parking Assist Control Module Nut (2) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector. (1)
Connect the electrical connectors.
- Quarter Lower Rear Trim Panel- Right Side (1) - Install

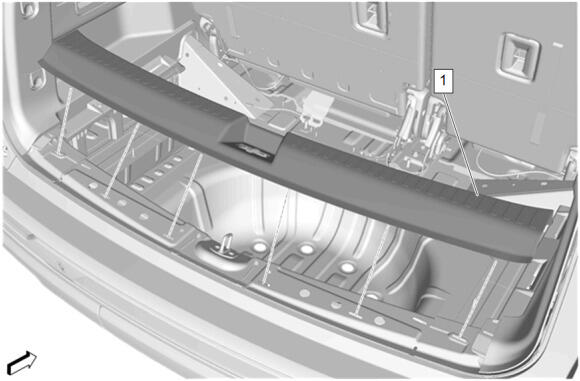

Rear End Trim Finish Panel (1) - Install

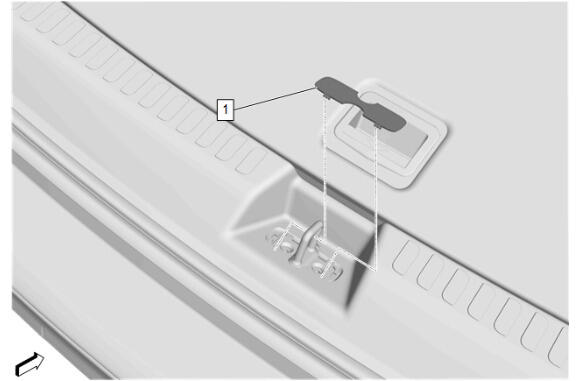

Liftgate Lock Striker Cover (1) - Install

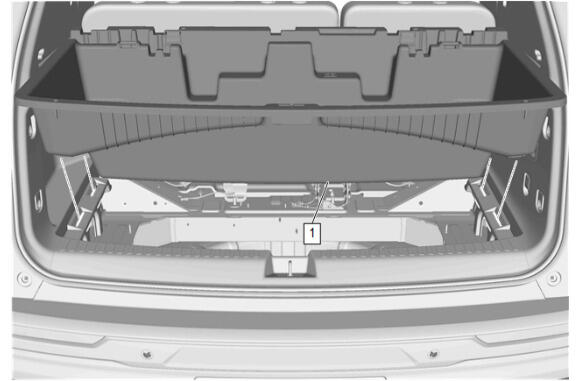

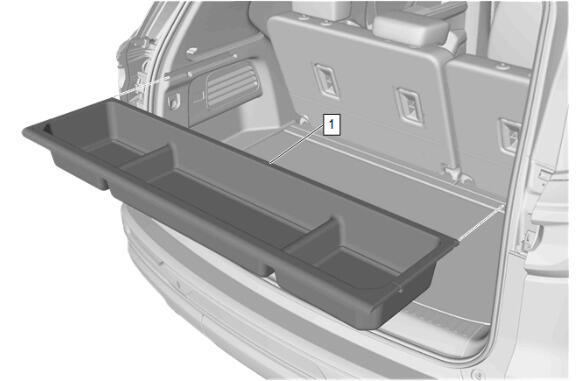

Rear Compartment Floor Stowage Compartment Divider (1) - Install

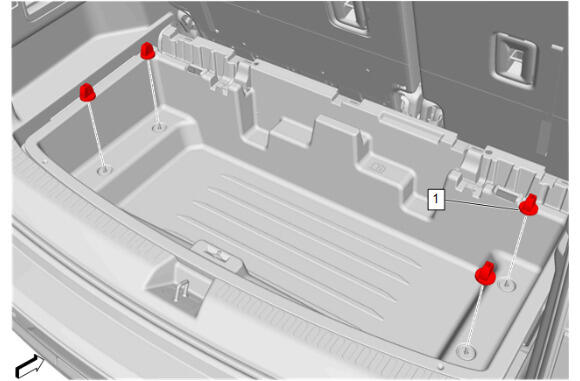

Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [4x] - Fastener Specifications

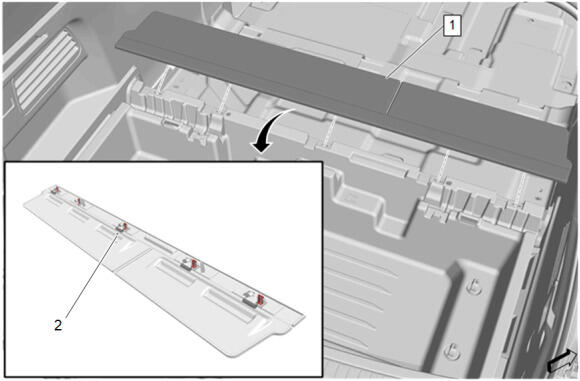

Adjust the springs (2) to make rear compartment floor panel front trim (1) engage the rear compartment floor stowage compartment divider.
- Rear Compartment Floor Panel Front Trim (1) - Install

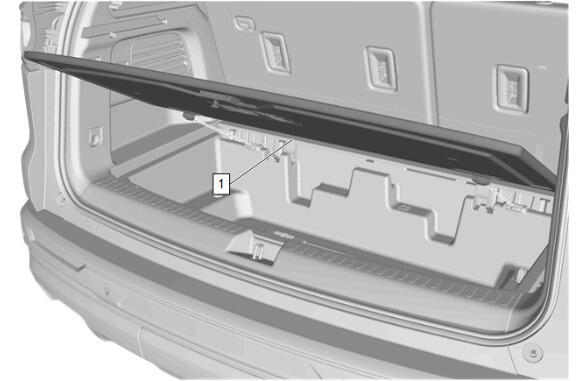

Load Floor Trim Panel (1) - Install

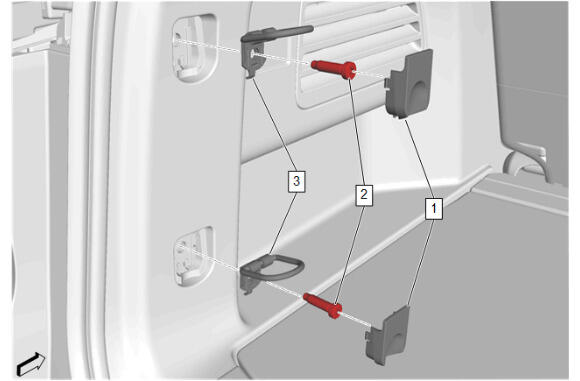

Cargo Tie Down Loop- Right Side (3) - Install [2x]
- Cargo Tie Down Loop Bolt- Right Side (2) - Install and tighten [2x] - Fastener Specifications
- Cargo Tie Down Loop Trim Cover- Right Side (1) - Install [2x]
{ If equipped } Rear Wheelhouse Trim Finish Panel Stowage Box (1) - Install
Connect the electrical connector.
- Body Rear Corner Upper Garnish Molding- Right Side (1) - Install
Body Rear Corner Upper Garnish Molding Bolt- Right Side (2) - Install and tighten - Fastener Specifications

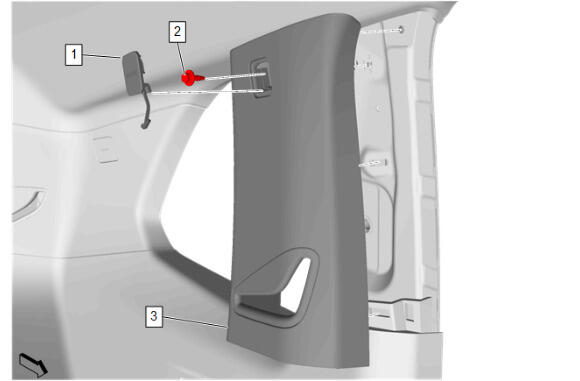

- Quarter Window Trim Finish Panel Bolt Cap- Right Side (1) - Install

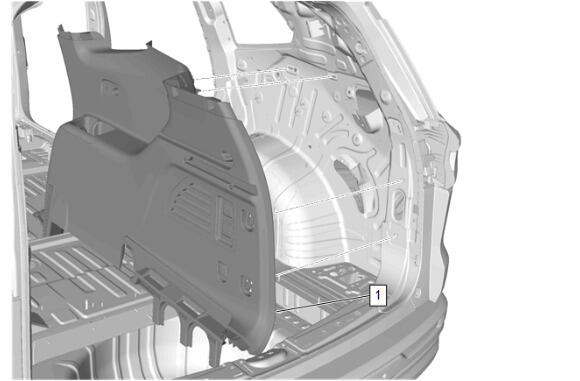

Quarter Upper Trim Panel- Right Side (3) - Install
- Quarter Window Trim Finish Panel Bolt- Right Side (2) - Install and tighten - Fastener Specifications
- Body Lock Pillar Upper Trim Panel Bolt Hole Plug - Right Side (1) - Install

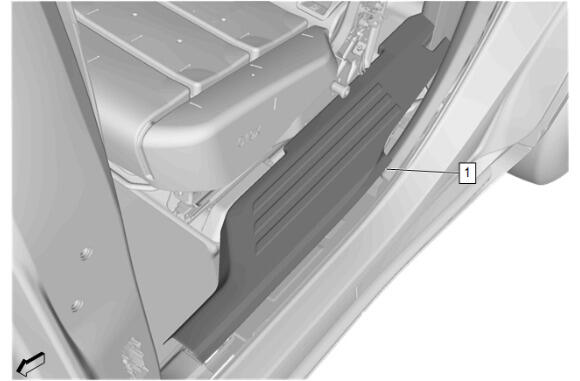

Rear Side Door Sill Garnish Molding- Right Side (1) - Install
- Enable the SIR System. SIR Disabling and Enabling
Refer to Fastener Caution .
