Installation Procedure

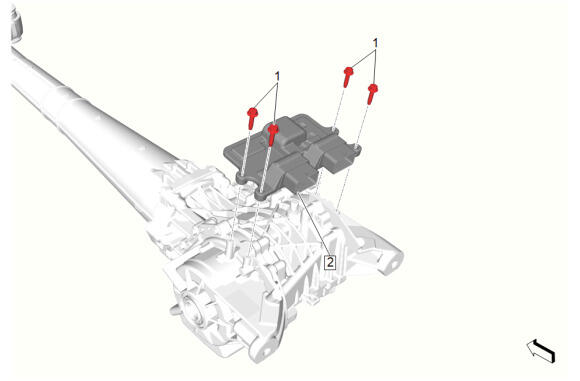

Rear Differential Clutch Control Module (2) - Install
- Rear Differential Clutch Control Module Bolt (1) - Install and tighten [4x] - Fastener Specifications

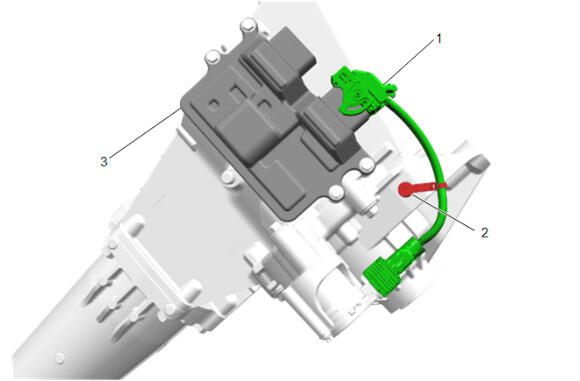

Electrical Connector (1) - Connect
- Install the differential carrier assembly. Differential Carrier Assembly Replacement (Base, Uplvl, Denali) , or Differential Carrier Assembly Replacement (AT4)
- Reprogram the K47 Rear Differential Clutch Control Module. Control Module References
Refer to Fastener Caution .
