Removal Procedure
- Disable the SIR system. SIR Disabling and Enabling
- NOTE:
Left side shown, right side similar.
Quarter Window Trim Finish Panel Bolt Cap- Right Side (1) - Remove
- Body Rear Corner Upper Garnish Molding Bolt- Right Side (2) - Remove
- NOTE:
Left side shown, right side similar.
Body Rear Corner Upper Garnish Molding- Right Side (1) - Reposition
- Disconnect the electrical connector.
Quarter Lower Rear Trim Panel- Right Side (1) - Reposition
Disconnect the electrical connectors.
- Release the retaining tabs.

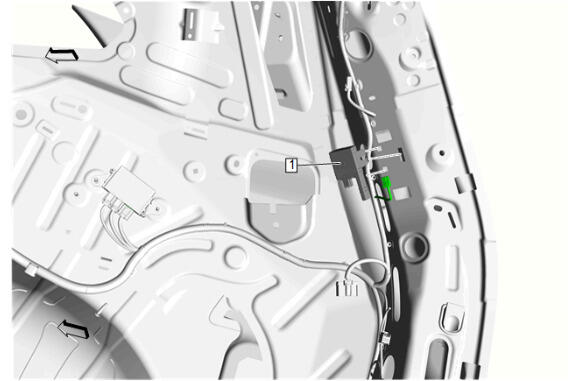

- Remote Function Actuator Module (1) - Remove
