Installation Procedure

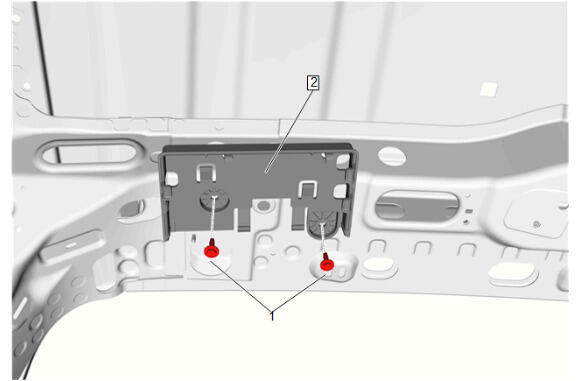

Communication Interface Module Bracket (2) - Install
- Communication Interface Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Telematic Control Module (1) - Install
- Ensure that the retaining tabs are fully secured.
- Connect the electrical connector.
- NOTE:
Left side shown, right side similar.
Connect the electrical connector.
- Body Rear Corner Upper Garnish Molding- Left Side and Right Side (1) - Install [2x]
Body Rear Corner Upper Garnish Molding Bolt- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
- Quarter Window Trim Finish Panel Bolt Cap- Left Side and Right Side (1) - Install [2x]
- Perform the necessary programming and setup procedure: Control Module References
Refer to Fastener Caution .
