Removal Procedure
- NOTE:
Left side shown, right side similar.

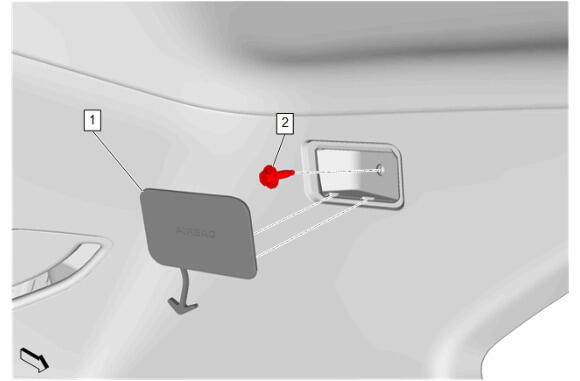

Quarter Window Trim Finish Panel Bolt Cap- Left Side and Right Side (1) - Remove [2x]
- Body Rear Corner Upper Garnish Molding Bolt- Left Side and Right Side (2) - Remove [2x]
- NOTE:
Left side shown, right side similar.

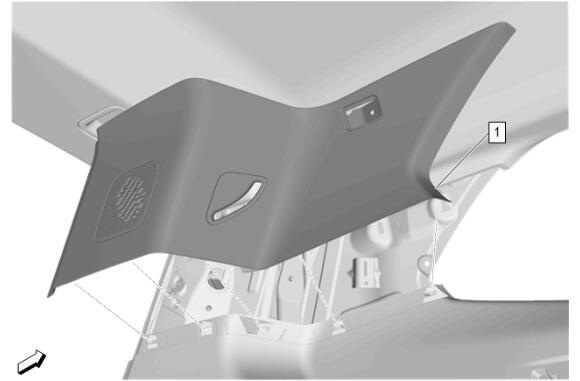

Body Rear Corner Upper Garnish Molding- Left Side and Right Side (1) - Reposition [2x]
- Disconnect the electrical connectors.
- Lower the rear of the headlining trim panel as necessary for access.

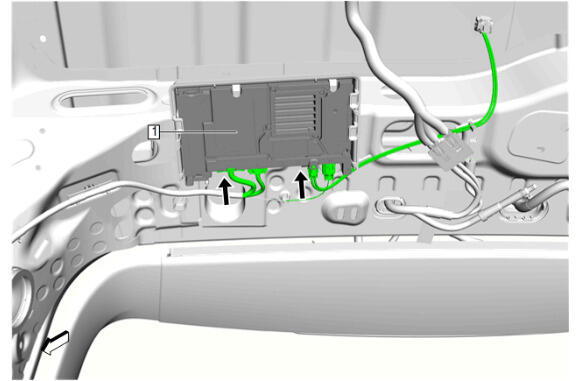

Disconnect the electrical connector.
- Release the retaining tabs.
- Telematic Control Module (1) - Remove

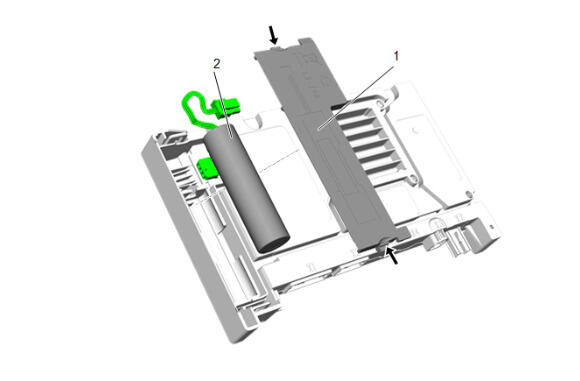

Release the retaining tab.
- Remove the communication interface module battery cover (1) to access the component.
- Disconnect the electrical connector.
- Communication Interface Module Battery (2) - Remove
