2022 GMC Hummer EVFACTORY OEM SERVICE PROCEDURE
Fastener Specifications

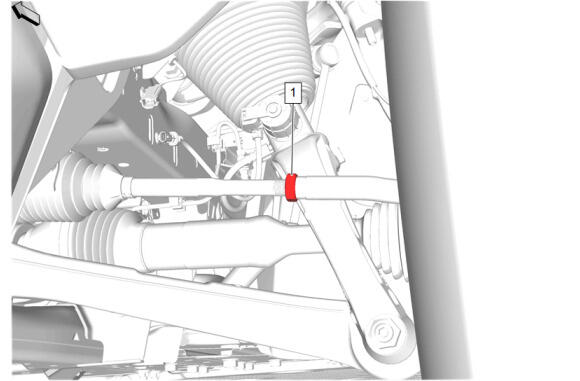

Steering Linkage Inner Tie Rod Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Linkage Inner Tie Rod Nut | - | - | 100 N.m (74 lb ft) | Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment |

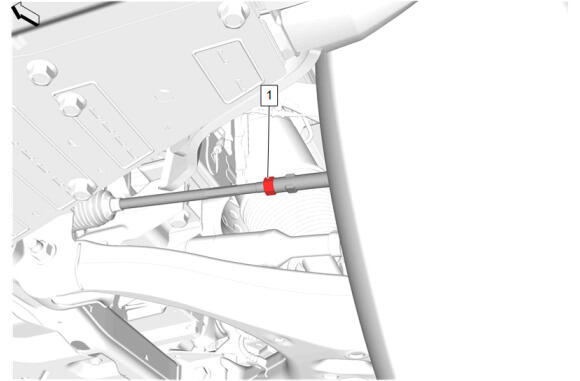

Rear Wheel Steering Linkage Outer Tie Rod Adjust Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Wheel Steering Linkage Outer Tie Rod Adjust Nut | - | - | 100 N.m (74 lb ft) | Rear Toe Adjustment |
