Installation Procedure

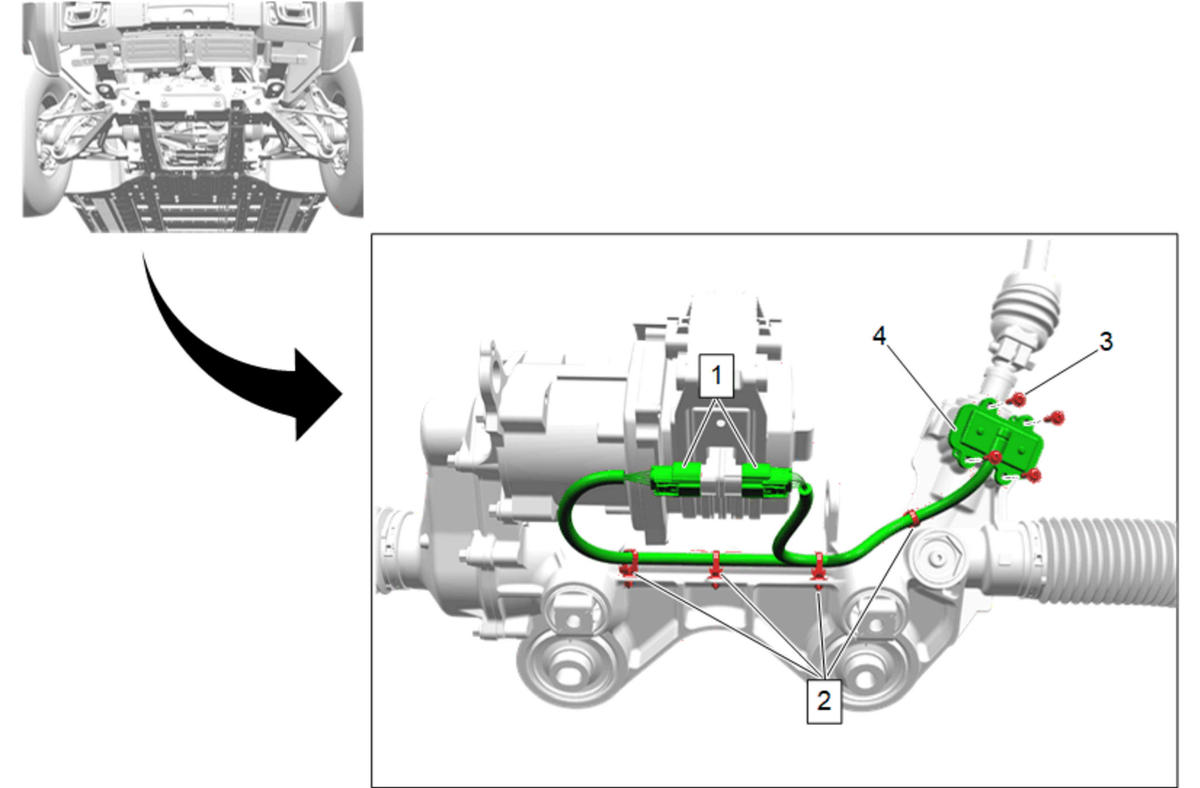

Power Steering Control Module Wiring Harness (4) - Install
- Steering Gear Bolt (3) - Install and tighten [4x] - Fastener Specifications
- Engage the 4 wiring harness retainers.
- Connect the electrical connectors. (1)

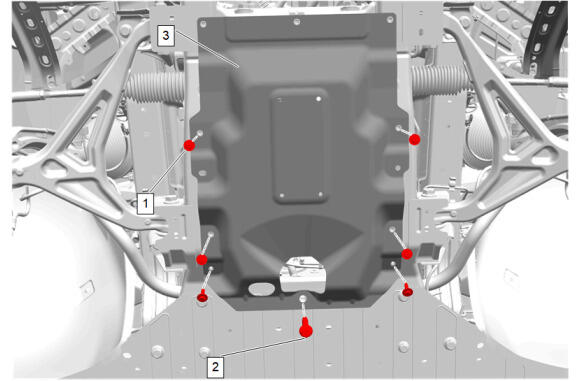

Underbody Skid Shield (3) - Install
- High Voltage Battery Tray Reinforcement Bolt (2) - Install and tighten - Fastener Specifications
- Underbody Skid Rear Shield Bolt (1) - Install and tighten [6x] - Fastener Specifications

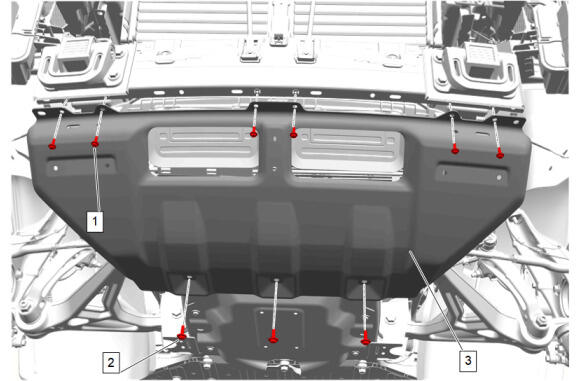

Underbody Splash Shield (3) - Install
- Connect the electrical connector.
- Underbody Splash Shield Bolt- Lower (2) - Install and tighten [3x] - Fastener Specifications
- Underbody Splash Shield Bolt- Upper (1) - Install and tighten [6x] - Fastener Specifications

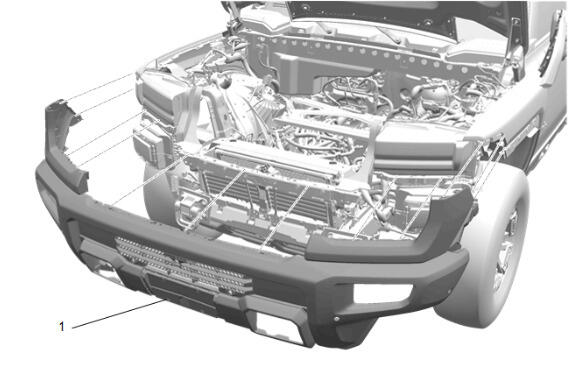

Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
Refer to Fastener Caution
