2022 GMC Hummer EVFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- NOTE:
Left side shown, right side similar.
Rear Wheelhouse Liner- Right Side (3) - Remove - Rear Wheelhouse Liner Replacement

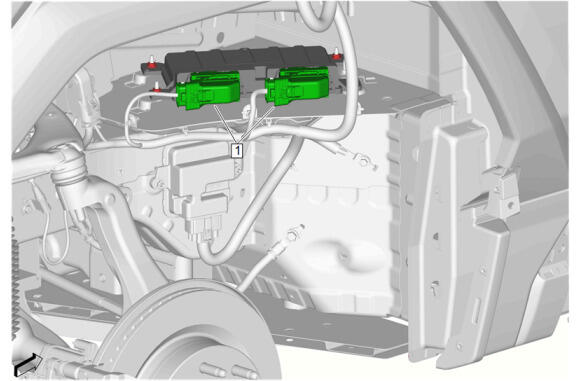

Disconnect the electrical connectors. (1)

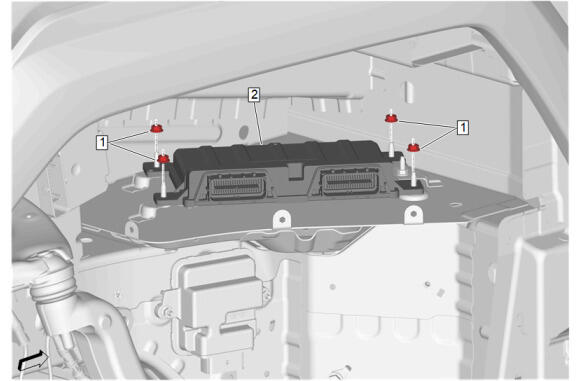

Hybrid Powertrain Control Module 2 Nut (1) - Remove [4x]
- Battery Energy Control Module 2 (2) - Remove
