2022 GMC Hummer EVFACTORY OEM SERVICE PROCEDURE
Fastener Specifications

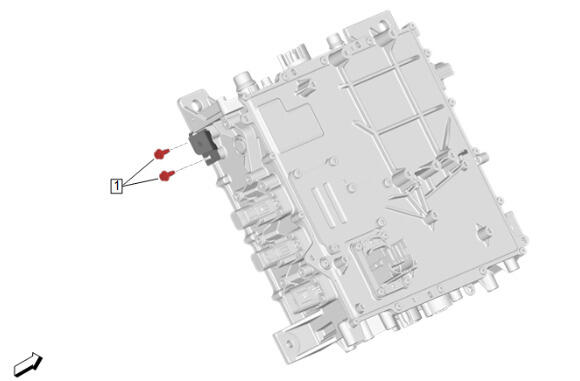

Battery Charger Bolts @ Drive Motor Power Distribution Control Module Protector
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Power Distribution Control Module Bolt [3x] | - | - | 9 N.m (80 lb in) | Battery Charger Replacement |

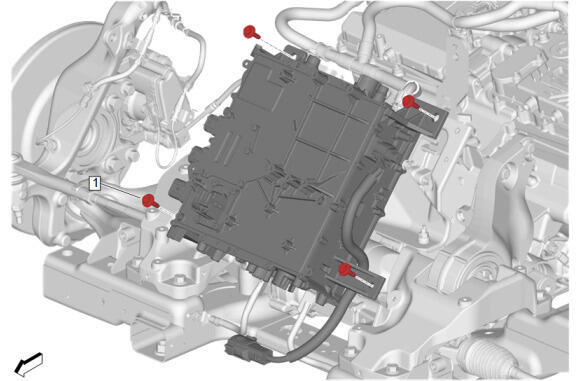

Battery Charger Bolts @ Power Electric Carrier Frame
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Power Distribution Control Module Bolt [4x] | - | - | 22 N.m (16 lb ft) | Battery Charger Replacement |

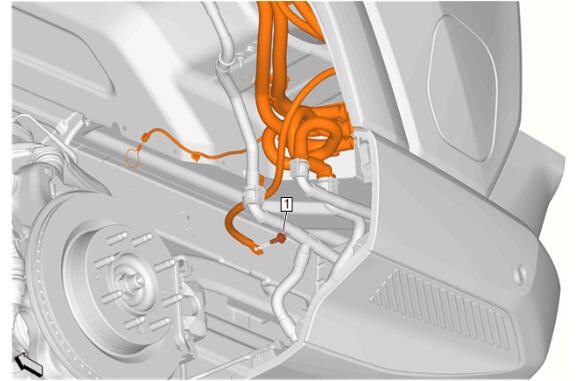

Battery Charger Coupling Bolt @ Ground Strap
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Receptacle Bolt | - | - | 22 N.m (16 lb ft) | Battery Charger Coupler Replacement |

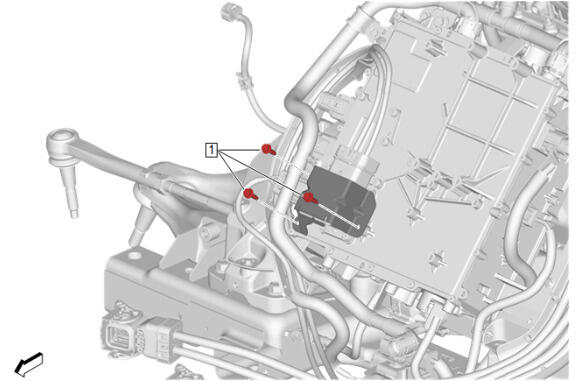

Battery Charger Coupling Bolts @ Channel
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Receptacle Bolt [3x] | - | - | 9 N.m (80 lb in) | Battery Charger Coupler Replacement |

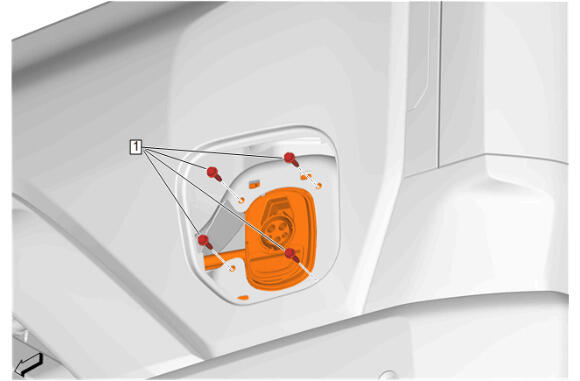

Battery Charger Coupling Bolts @ Charge Port Housing
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Receptacle Bolt [4x] | - | - | 9 N.m (80 lb in) | Battery Charger Coupler Replacement |

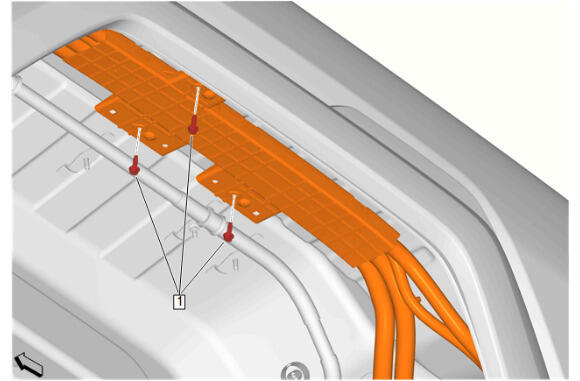

Drive Motor Power Inverter Module Bracket Bolts
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Power Inverter Module Cooling Inlet Hose Bracket Bolt [2x] | - | - | 9 N.m (80 lb in) | Battery Charger Replacement |
