2021 GMC Yukon AT4FACTORY OEM SERVICE PROCEDURE
Fastener Specifications

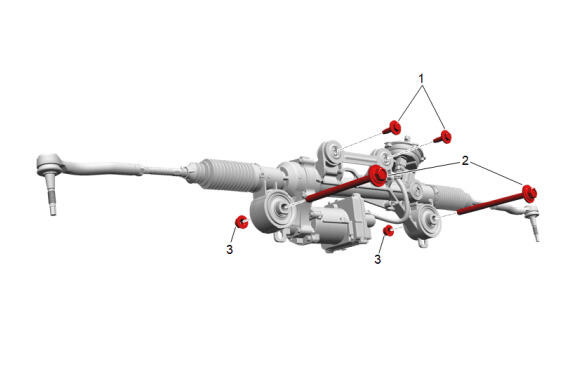

Electric Belt Drive Rack and Pinion Steering Gear

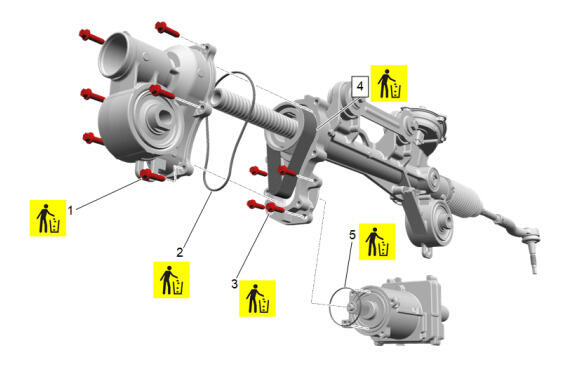

Power Steering Assist Motor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Gear Bolt [ 6x ] | Yes | - | 28 N.m (21 lb ft) | Power Steering Assist Motor Replacement |
| 2 | Power Steering Assist Motor Seal @ Electric Belt Drive Rack and Pinion Steering Gear | Yes | - | - | Power Steering Assist Motor Replacement |
| 3 | Power Steering Assist Motor Bolt [ 4x ] | Yes | - | 28 N.m (21 lb ft) | Power Steering Assist Motor Replacement |
| 4 | Electric Belt Drive Rack and Pinion Steering Gear Belt | Yes | - | - | Power Steering Assist Motor Replacement |
| 5 | Power Steering Assist Motor Seal @ Power Steering Assist Motor | Yes | - | - | Power Steering Assist Motor Replacement |

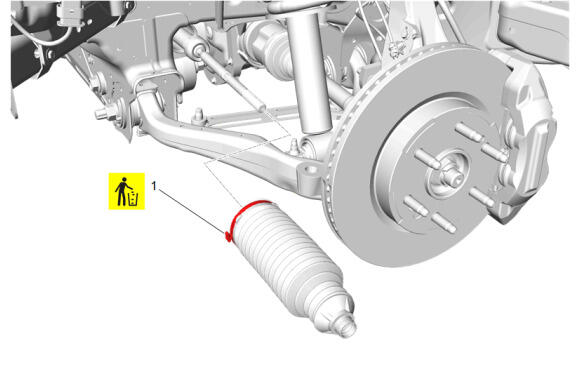

Steering Gear Boot
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Gear Boot Inner Clamp | Yes | - | - | Steering Gear Boot Replacement (With RC1) , or Steering Gear Boot Replacement (Without RC1) |
