Installation Procedure

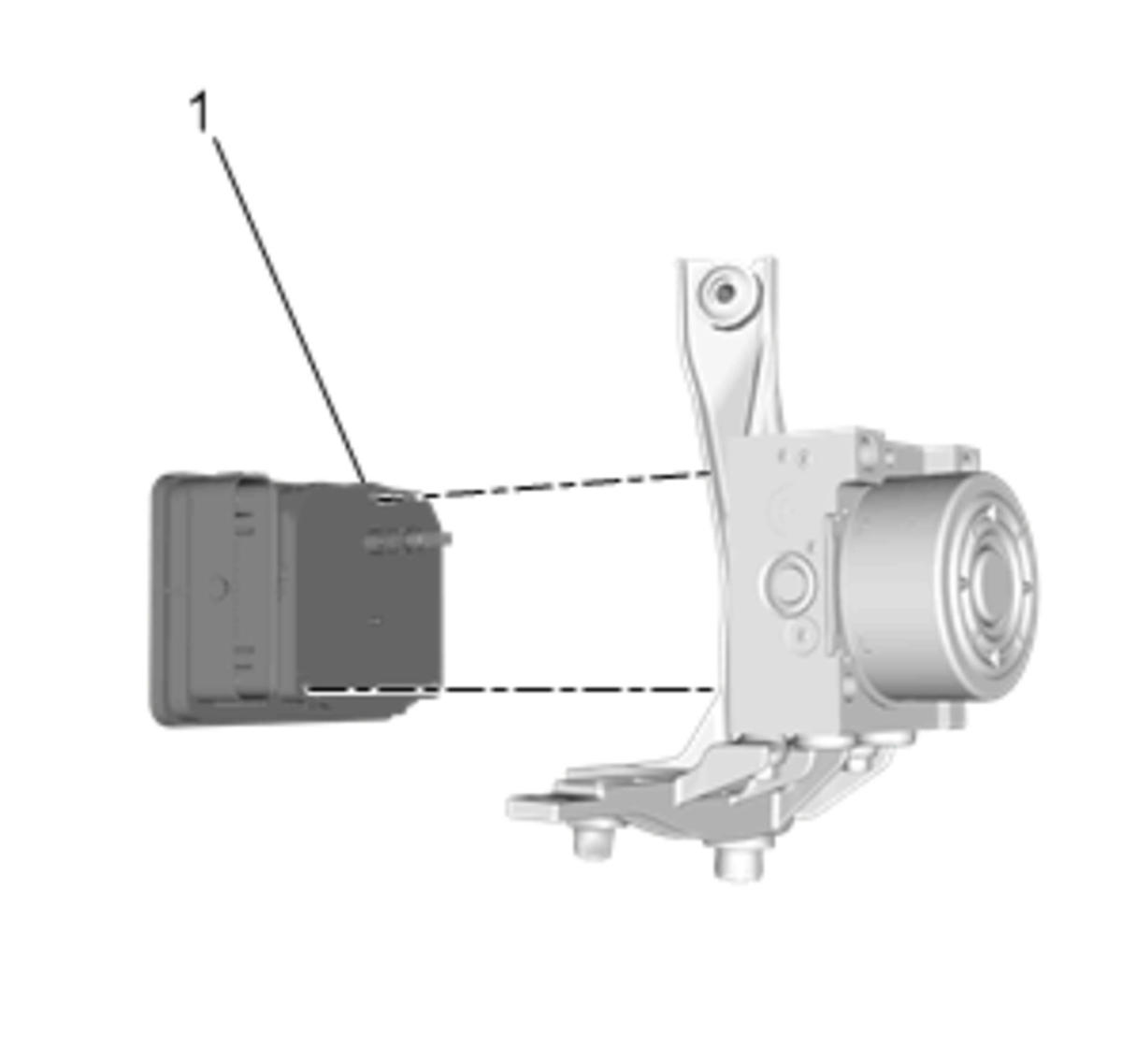

Electronic Brake Control Module (1) - Install
- CAUTION:
Refer to Fastener Caution .

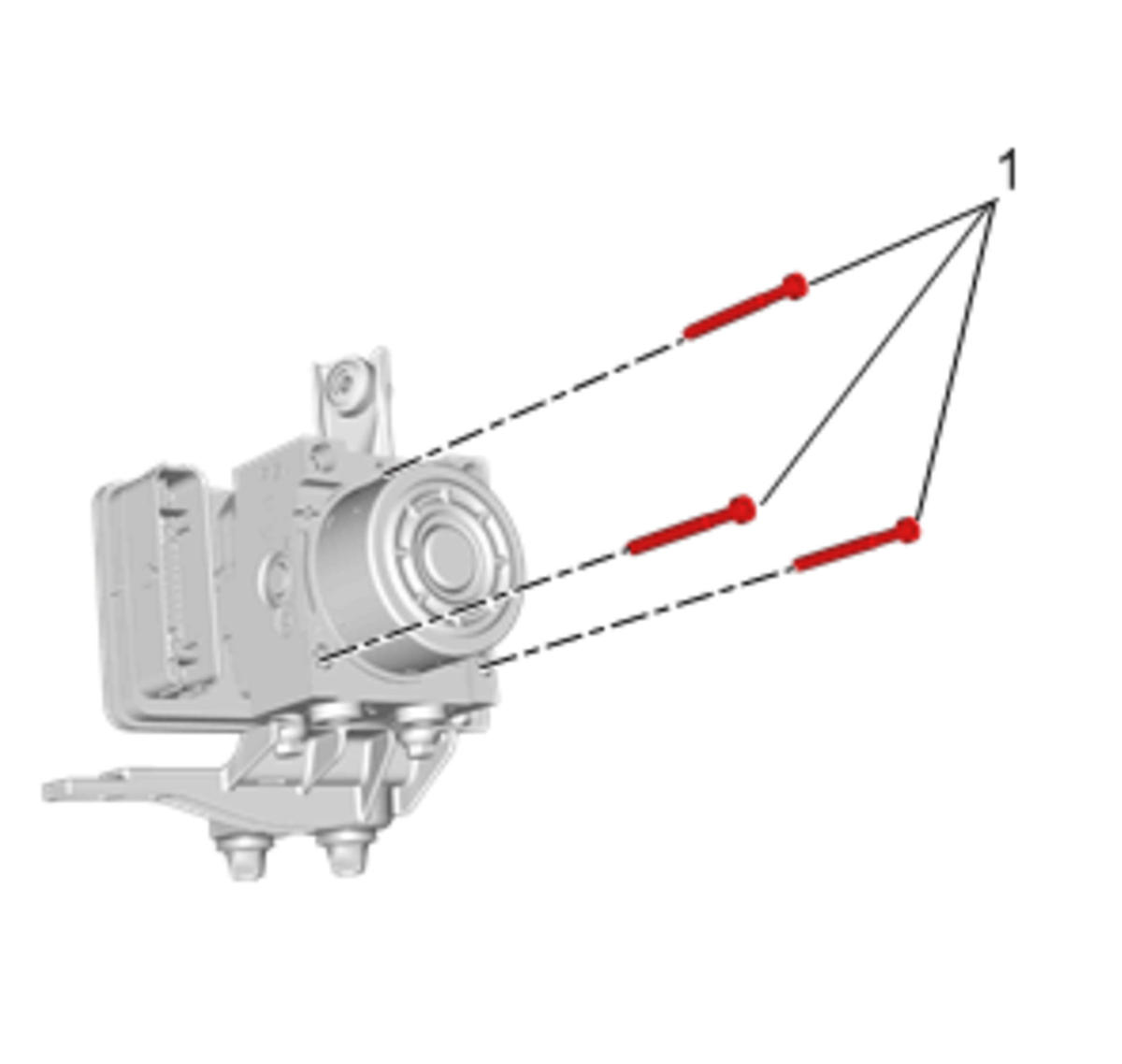

Electronic Brake Control Module Bolt (1) - Install and tighten [ 3x ] 5.1 N.m (45 lb/in)

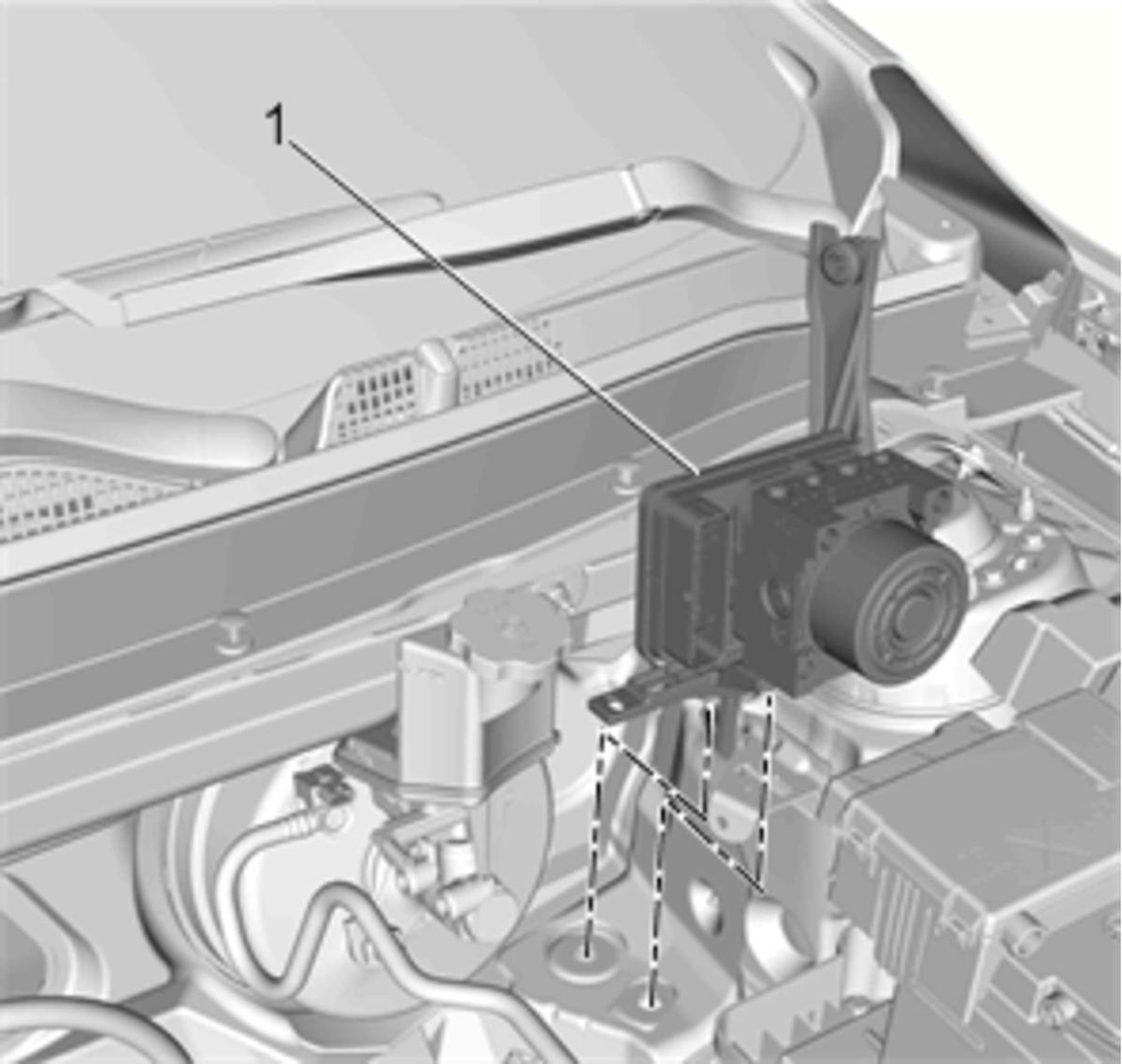

Electronic Brake Control Module with Brake Pressure Modulator Valve (1) - Install - Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
- Program the electronic brake control module. Control Module References
