Installation Procedure
- CAUTION:
Refer to Fastener Caution .

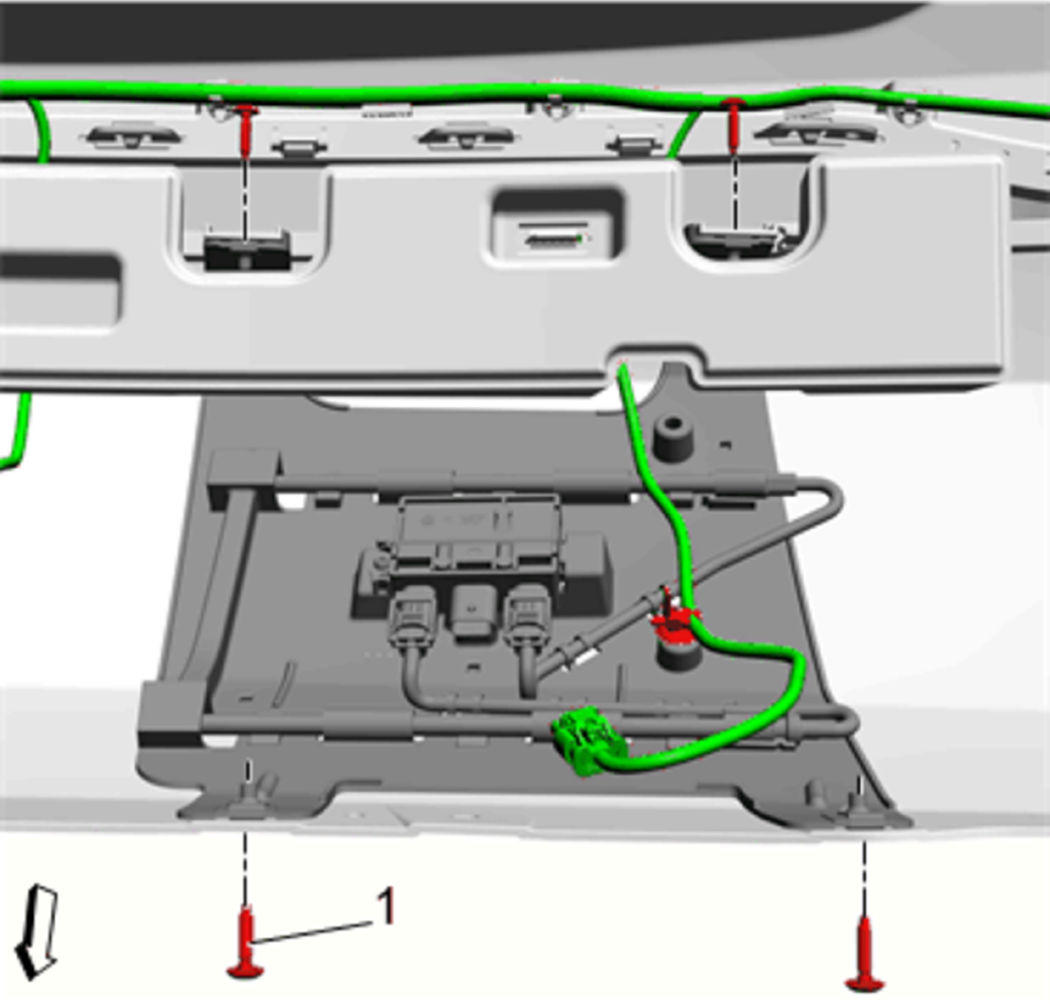

Rear Closure Hands Free Module Bolt (1) - Install and tighten [ 4x ] 5 N.m (44 lb in)
- Connect the electrical connector.

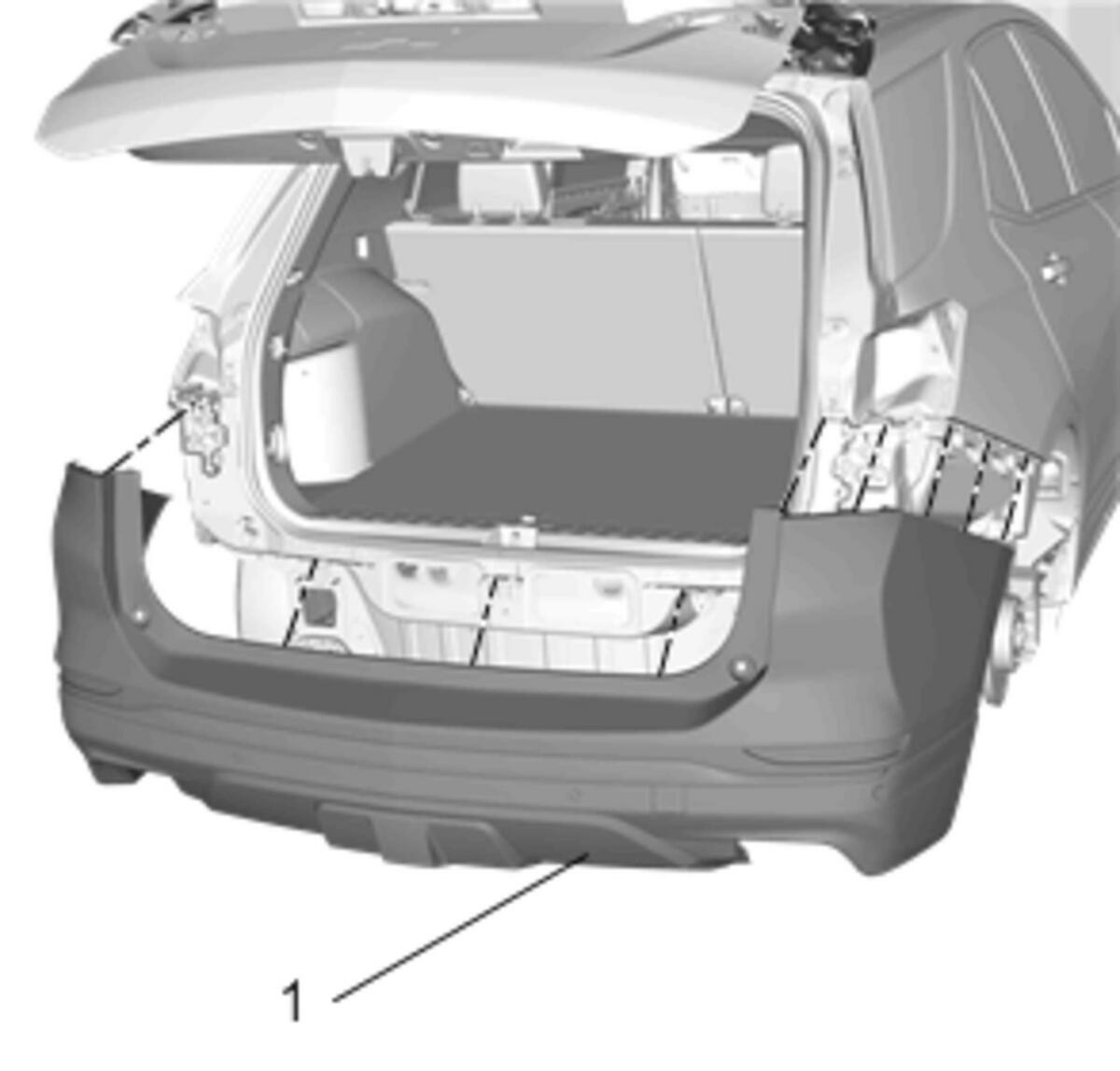

Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Replacement (Equinox) , or Rear Bumper Fascia Replacement (Terrain)
- Perform the necessary programming and setup procedure: Control Module References
