2021 GMC Terrain SLFACTORY OEM SERVICE PROCEDURE

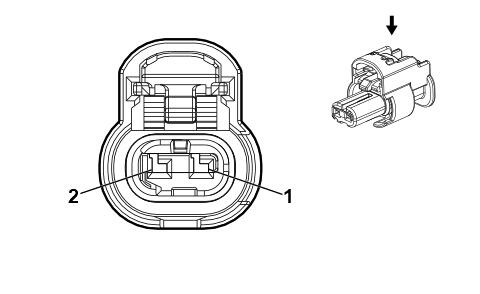

Q46 A/C Compressor Solenoid Valve
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-16 (LT GN) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.75 | BU / YE | 7574 | A/C Compressor Solenoid Valve Control | I | - |
| 2 | 0.75 | BU / BN | 7573 | A/C Compressor Solenoid Valve Control | I | - |
