2021 GMC Terrain SLFACTORY OEM SERVICE PROCEDURE

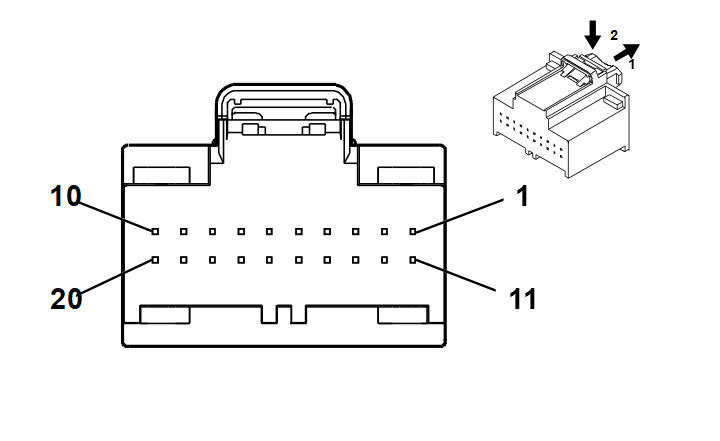

K40D Seat Memory Control Module - Driver X6
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-64B (LT BU) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 - 11 | - | - | - | Not Occupied | - | - |
| 12 | 0.35 | WH | 615 | Seat Memory Switch Signal 1 | I | - |
| 13 - 14 | - | - | - | Not Occupied | - | - |
| 15 | 0.35 | BU / GN | 614 | Seat Memory Switch Set Signal | I | - |
| 16 - 20 | - | - | - | Not Occupied | - | - |
