2021 GMC Terrain SLFACTORY OEM SERVICE PROCEDURE
K39 Liftgate Control Module X2 (TB5)

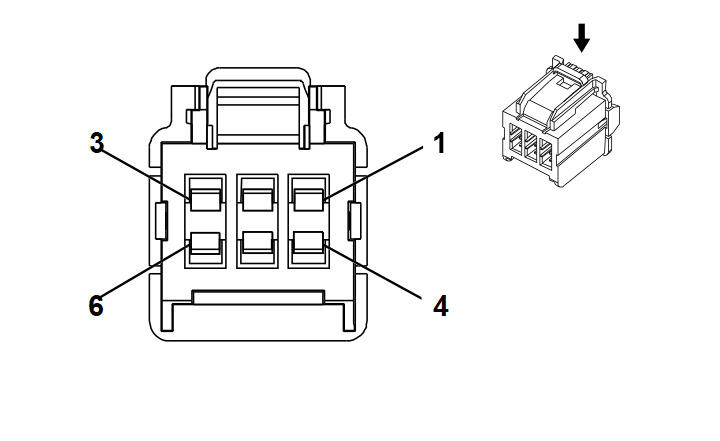

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-4A (PU) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1 | BU / GY | 4682 | Rear Closure Cinch Latch Motor Release Control | I | - |
| 2 | 1 | BN | 4681 | Rear Closure Cinch Latch Motor Cinch Control | I | - |
| 3 | - | - | - | Not Occupied | - | - |
| 4 | 0.35 0.5 |
RD / GN RD / GN |
2440 2440 |
Battery Positive Voltage Battery Positive Voltage |
I I |
TB5-TC2-UEU UEU |
| 5 | - | - | - | Not Occupied | - | - |
| 6 | 2.5 | BK | 2550 | Ground | I | (TC2/TB5) |
