2021 GMC Terrain SLFACTORY OEM SERVICE PROCEDURE
Q8 Control Solenoid Valve Assembly X1 (MNH/MNK)

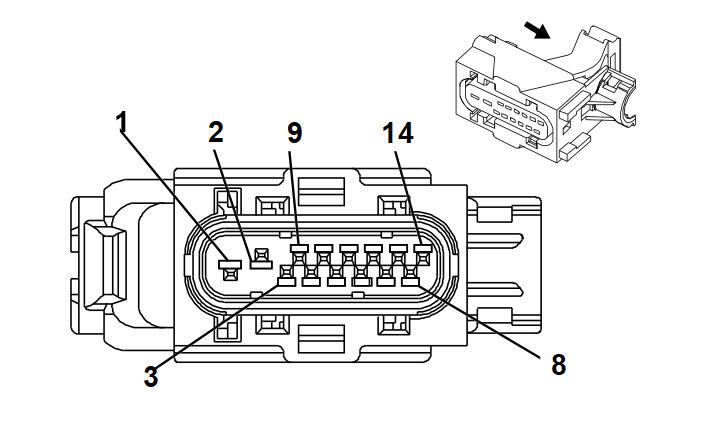

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | J-35616-14 (GN) | J-38125-215A | |
| II | Pending | J-35616-4A (PU) | J-38125-215A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1 1.5 |
RD / VT RD / GN |
340 2173 |
Battery Positive Voltage 12V Regulated Supply Voltage 2 |
II II |
(MNK/MNH)-KL9 KL9+(MNK/MNH) |
| 2 | 1 | BK / WH | 151 | Signal Ground | II | (LYX)+(MNK/MNH) |
| 3 | 0.5 | WH / GY | 1786 | Transmission Park/Neutral Signal 1 | I | - |
| 4 - 5 | - | - | - | Not Occupied | - | - |
| 6 | 0.5 | BU | 2500 | High Speed GMLAN Serial Data [+] 1 | I | - |
| 7 | 0.5 | BU | 2500 | High Speed GMLAN Serial Data [+] 1 | I | - |
| 8 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data [-] 1 | I | - |
| 9 - 11 | - | - | - | Not Occupied | - | - |
| 12 | 0.5 | VT / GN | 439 | Run/Crank Ignition 1 Voltage | I | (LYX)+(MNK/MNH) |
| 13 | 0.5 | VT / YE | 5985 | Accessory Wake-Up Serial Data | I | (MNK/MNH) |
| 14 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data [-] 1 | I | - |
