2021 GMC Terrain SLFACTORY OEM SERVICE PROCEDURE
E14A Seat Heating Element - Driver Back

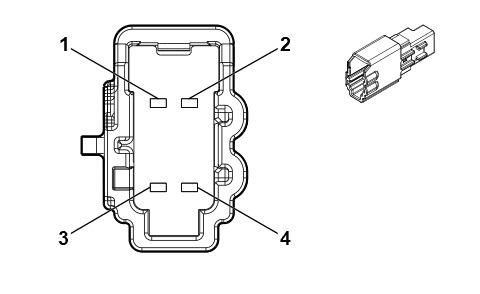

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-17 (LT GN) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.75 0.75 |
BN / VT BN |
2077 2432 |
Driver Seat Heating Element Control Driver Seat Back Heating Element Control |
I I |
(KA1/KU1/KU3)-EPH KA1+EPH-KU3-KU1 |
| 2 | 0.35 | BU | 2425 | Driver Seat Back Heating Temperature Sensor Signal | I | - |
| 3 | 0.35 0.35 |
BK / YE BK / VT |
2080 2426 |
Driver Heated Seat Thermistor Low Reference Driver Heated Back Thermistor Low Reference |
I I |
(KA1/KU1/KU3)-EPH KA1+EPH-KU3-KU1 |
| 4 | 0.75 | BN / BK | 2078 | Driver Seat Heating Element Low Reference | I | - |
