2021 GMC Terrain SLFACTORY OEM SERVICE PROCEDURE
B160 Windshield Temperature and Inside Moisture Sensor (ASV)

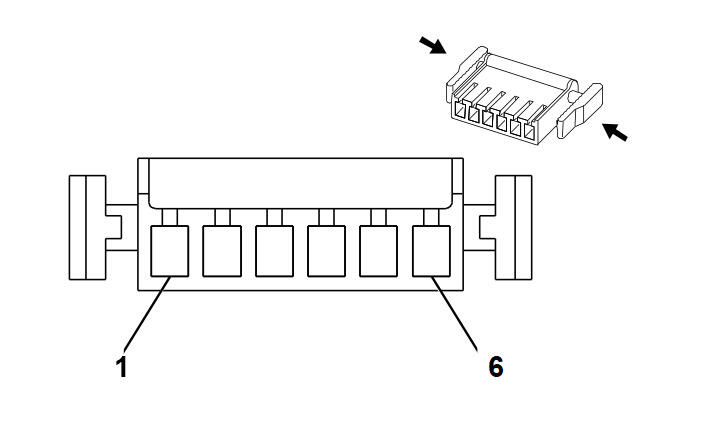

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not Available | No Tool Required | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | RD / | 597 | 5V Reference | I | - |
| 2 | - | BU / | 7564 | Humidity Sensor Signal 2 | I | - |
| 3 | - | BK / | 7566 | Windshield Temperature and Inside Moisture Sensor Low Reference | I | - |
| 4 | - | GN / | 7565 | Windshield Temperature Sensor Signal | I | - |
| 5 | - | YE / | 3197 | Intake Air Humidity and Temperature Sensor Signal | I | - |
| 6 | - | - | - | Not Occupied | - | - |
