2021 GMC Terrain SLFACTORY OEM SERVICE PROCEDURE

B111B Turbocharger Boost/Intake Air Temperature Sensor (LTG)

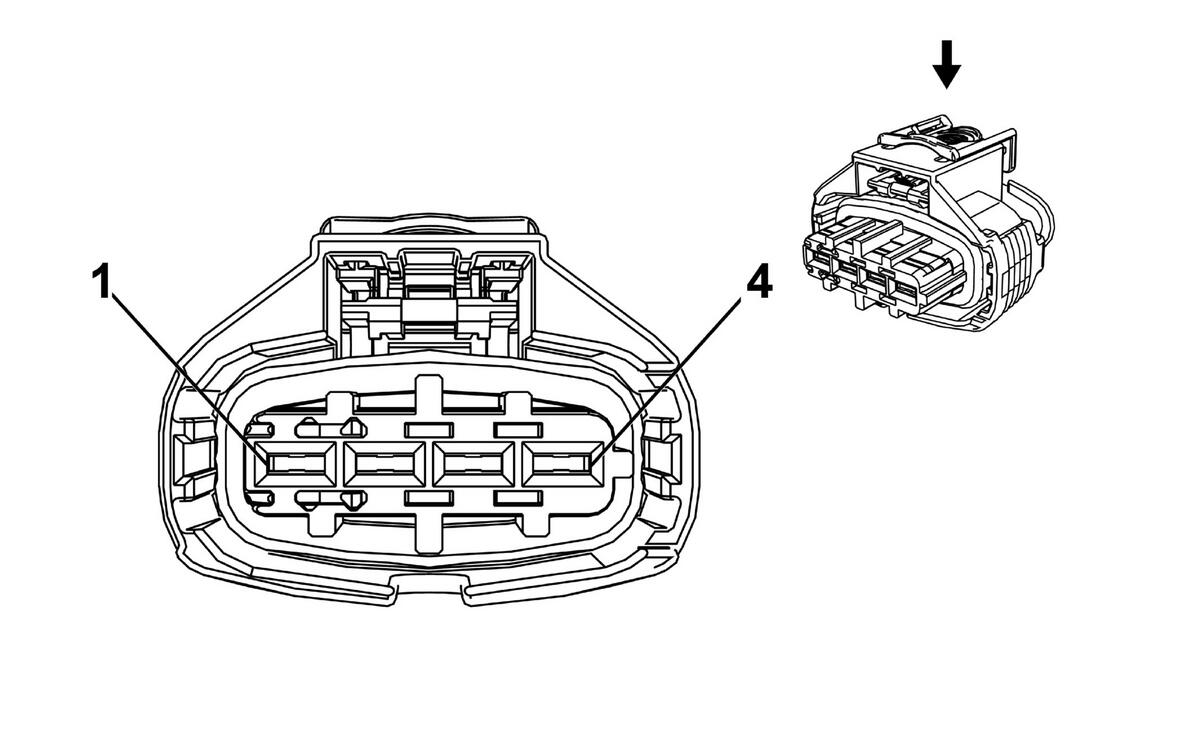

GM2487930Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Engine Harness
  • OEM Connector: 13343438
  • Service Connector: 13584423
  • Description: 4 -Way F 2.8 Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I Not required J-35616-35 (VT) No Tool Required
Pin Size Color Circuit Function Terminal Type ID Option
1 0.5 GY / RD 7332 Turbocharger Inlet Absolute Pressure Sensor 5 Volt Feedback Signal 2 I LTG
2 0.5 WH / BU 7329 Pre-Throttle Air Temperature Signal I LTG
3 0.5 BK / VT 7331 Turbocharger Inlet Absolute Pressure Sensor 5 Volt Reference 2 I LTG
4 0.5 VT / BU 7330 Turbocharger Inlet Absolute Pressure Sensor Signal 2 I LTG
