Column Lock Module Replacement

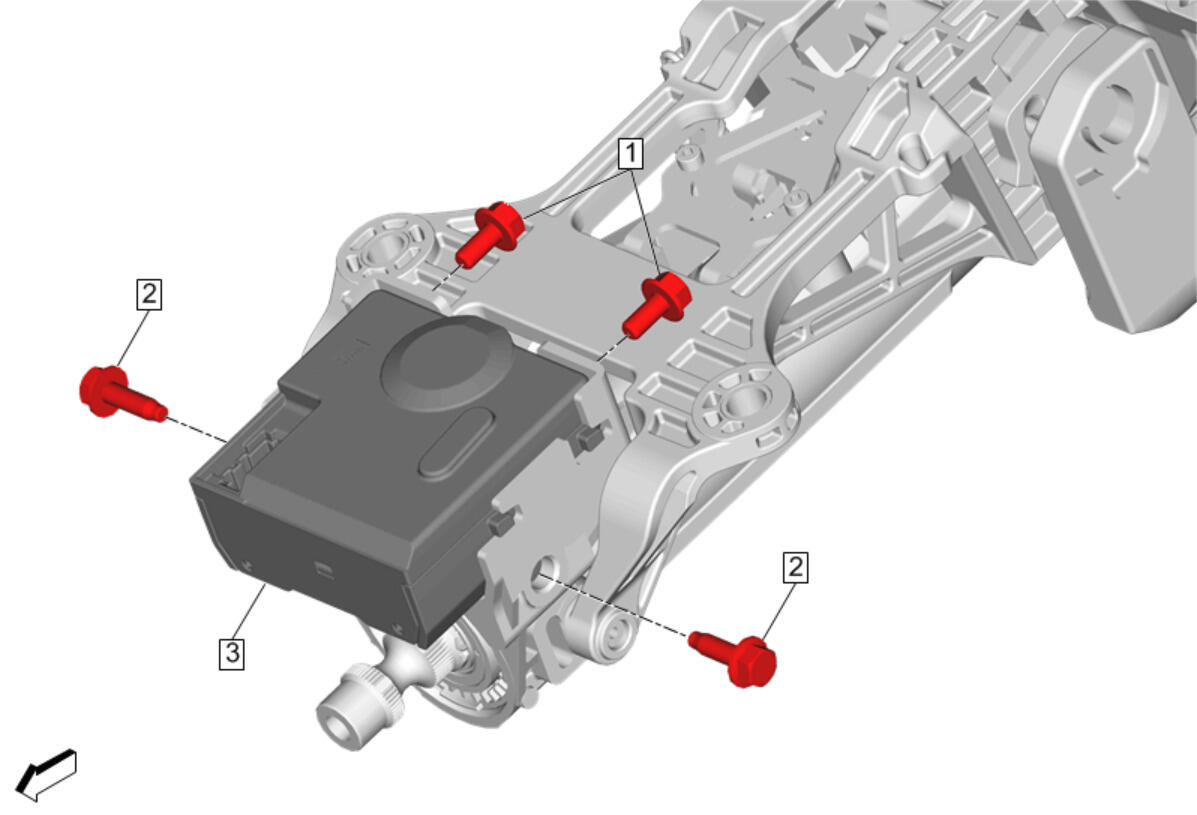

| Callout | Component Name |
|---|---|
|
Preliminary Procedure
|
|
| 1 | Steering Column Lock Control Module Bolt- Rear [2x]
CAUTION:
Refer to Fastener Caution . Tighten 9.5 N.m (84 lb in) |
| 2 | Steering Column Lock Control Module Bolt - Side [2x] Tighten 9.5 N.m (84 lb in) |
| 3 | Steering Column Lock Control Module Procedure Program the steering column lock control module. Control Module References |
