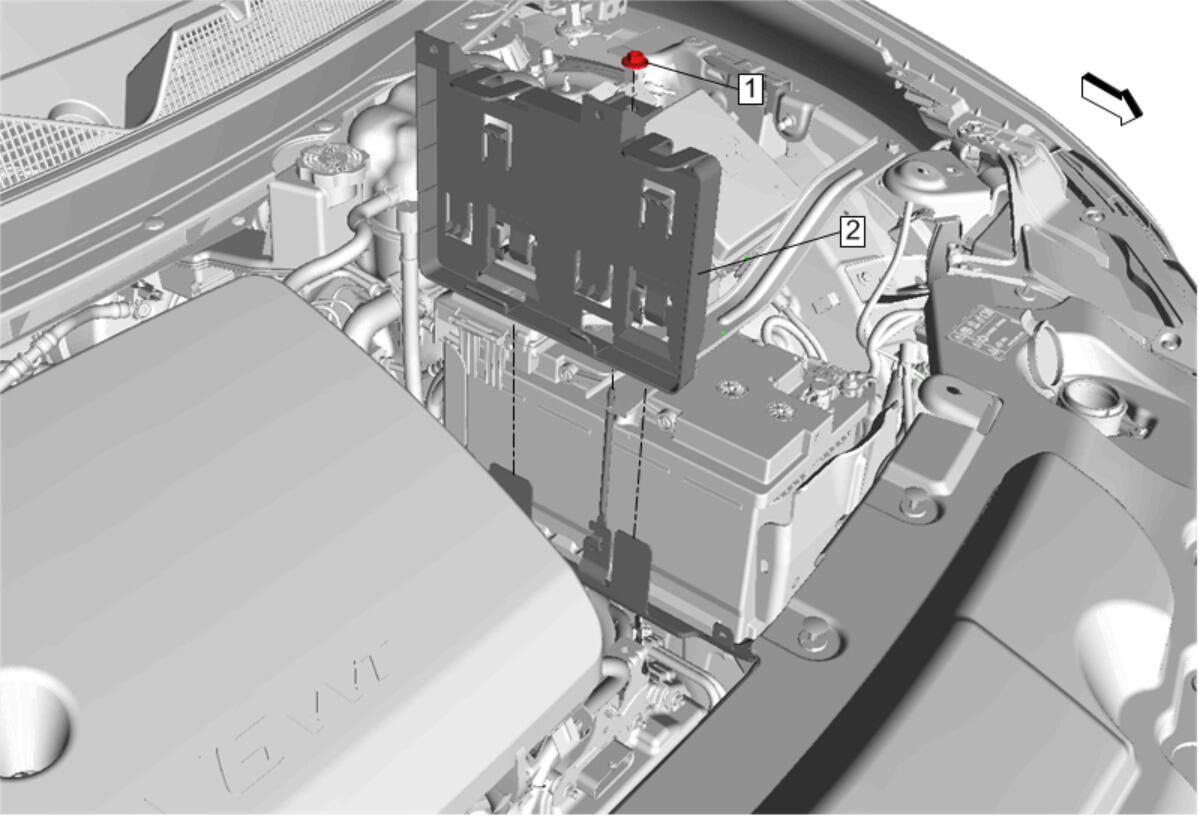

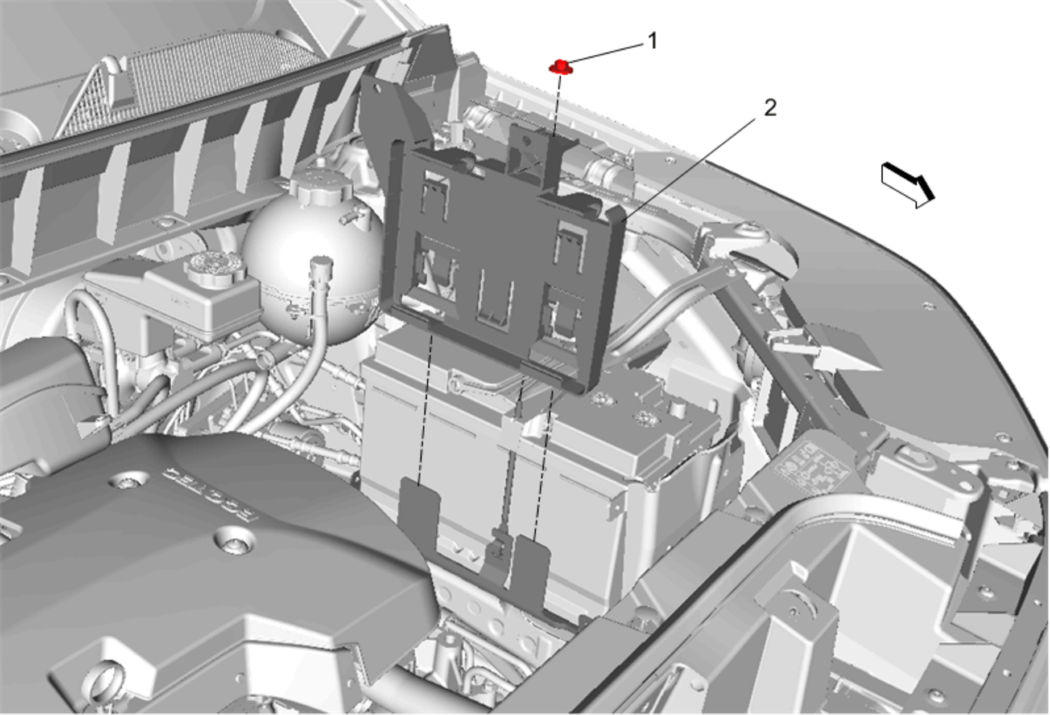

Engine Control Module Bracket Replacement
| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Engine Control Module Bracket Nut
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Engine Control Module Bracket |
