2021 GMC Acadia SLFACTORY OEM SERVICE PROCEDURE
Installation Procedure

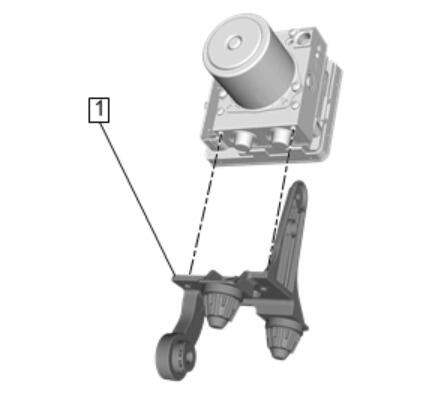

- Brake Pressure Modulator Valve Bracket (1) - Install

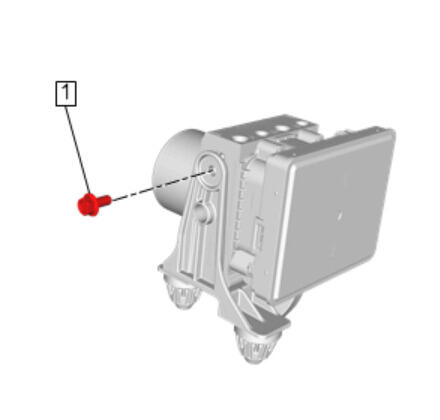

- Brake Pressure Modulator Valve Bolt (1) - Install and tighten 11 N.m (97 lb in)CAUTION:

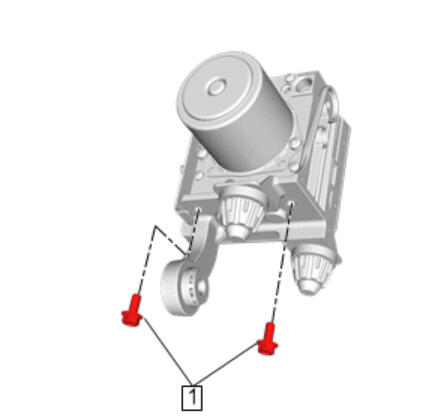

- Brake Pressure Modulator Valve Bolt (1) - Install and tighten 11 N.m (97 lb in) [2x]
- Electronic Brake Control Module with Brake Pressure Modulator Valve - Install - Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
