2021 GMC Acadia SLFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Electronic Brake and Traction Control Module Bracket - Install - Electronic Brake and Traction Control Module Bracket Replacement

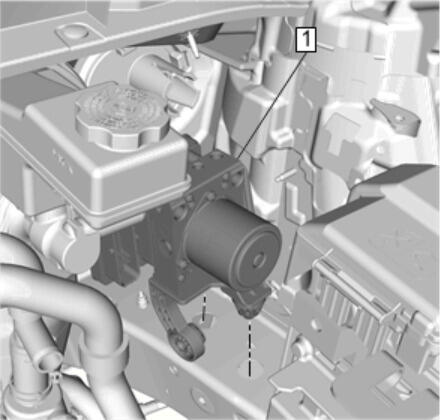

- Electronic Brake Control Module with Brake Pressure Modulator Valve Assembly (1) - Install

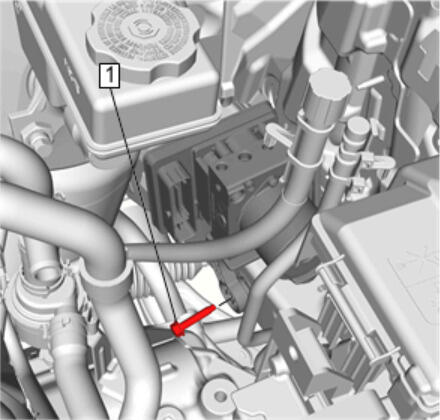

- Brake Pressure Modulator Valve Bracket Bolt (1) - Install and tighten 22 N.m (16 lb ft)CAUTION:
- Remove the cap from the brake pipe fitting and the plug from the BPMV outlet port.

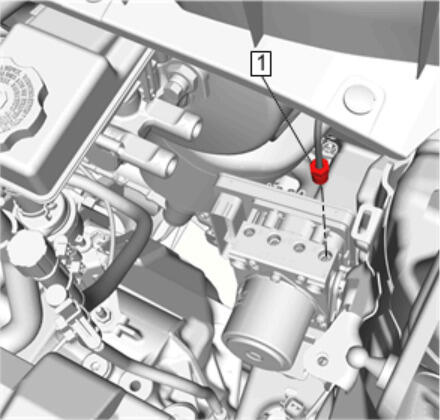

- Left Rear Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
- Remove the cap from the brake pipe fitting and the plug from the BPMV outlet port.

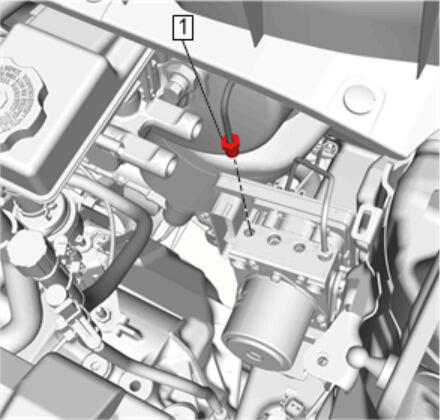

- Right Rear Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
- Remove the cap from the brake pipe fitting and the plug from the BPMV outlet port.

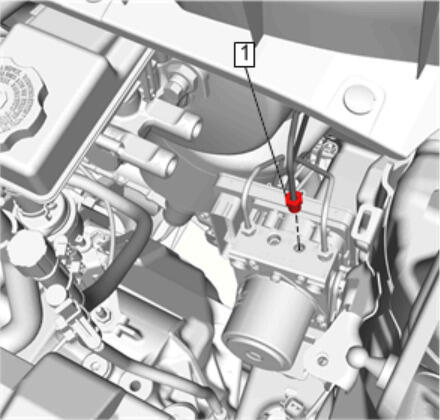

- Right Front Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
- Remove the cap from the brake pipe fitting and the plug from the BPMV outlet port.

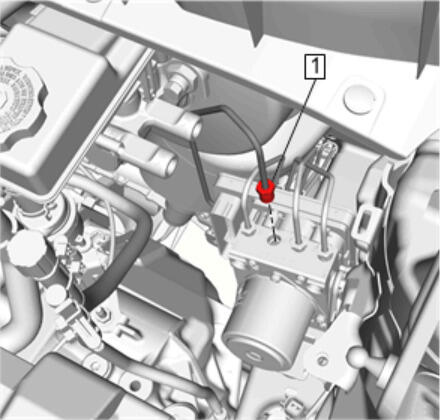

- Left Front Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
- Connect the EBCM electrical connector.
- Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe - Install - Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe Replacement
- Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe - Install - Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe Replacement
- Reposition and install the radiator surge tank. - Radiator Surge Tank Replacement (LCV) , or Radiator Surge Tank Replacement (LGX without C69) , or Radiator Surge Tank Replacement (LSY) , or Radiator Surge Tank Replacement (LGX with C69)
- Bleed the brake system. Antilock Brake System Automated Bleed
- Program the EBCM. Control Module References
- Center the steering angle sensor. Steering Wheel Angle Sensor Centering
