2021 GMC Acadia SLFACTORY OEM SERVICE PROCEDURE
Human-Machine Interface Control Module Bypass Module Replacement
NOTE:

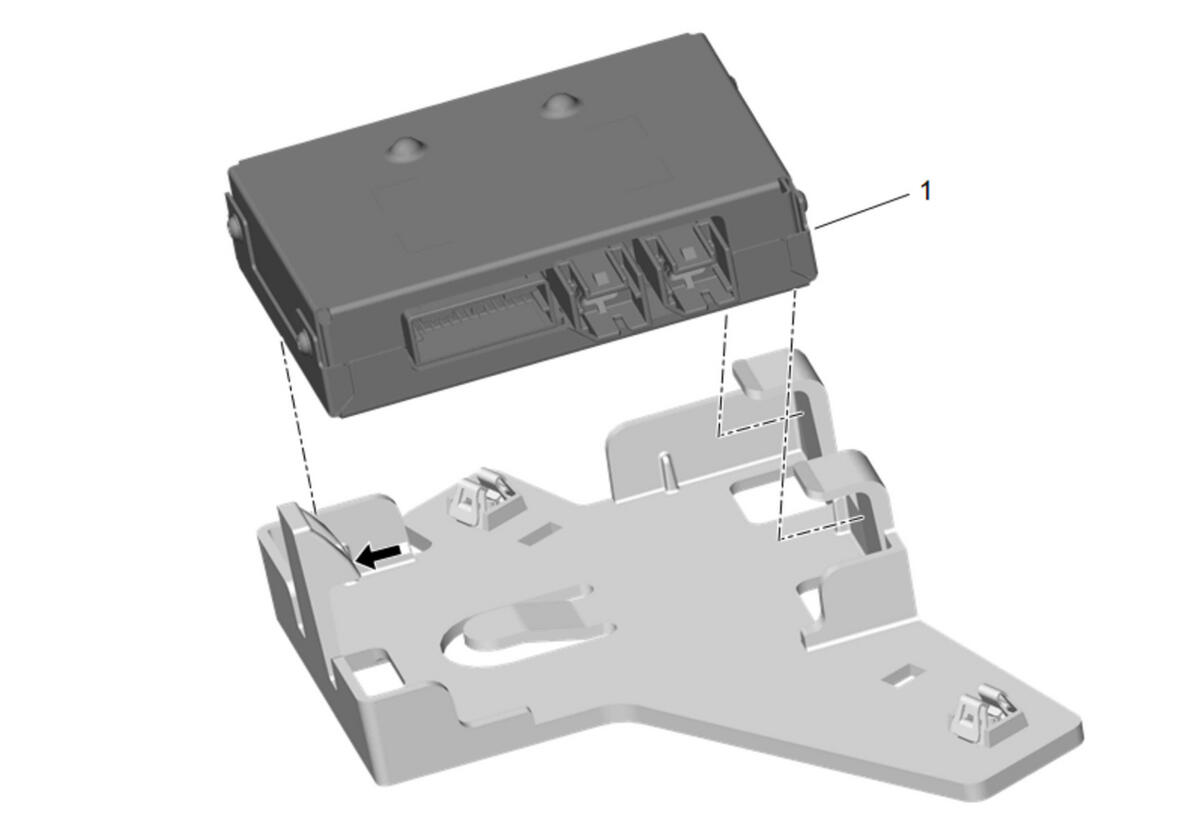

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Human-Machine Interface Control Module Bypass Module Bracket Replacement |
|
| 1 | Human Machine Interface Control Module Bypass Module Procedure Release the retaining tab. |
