Installation Procedure
Wireless Charging System Module - Install

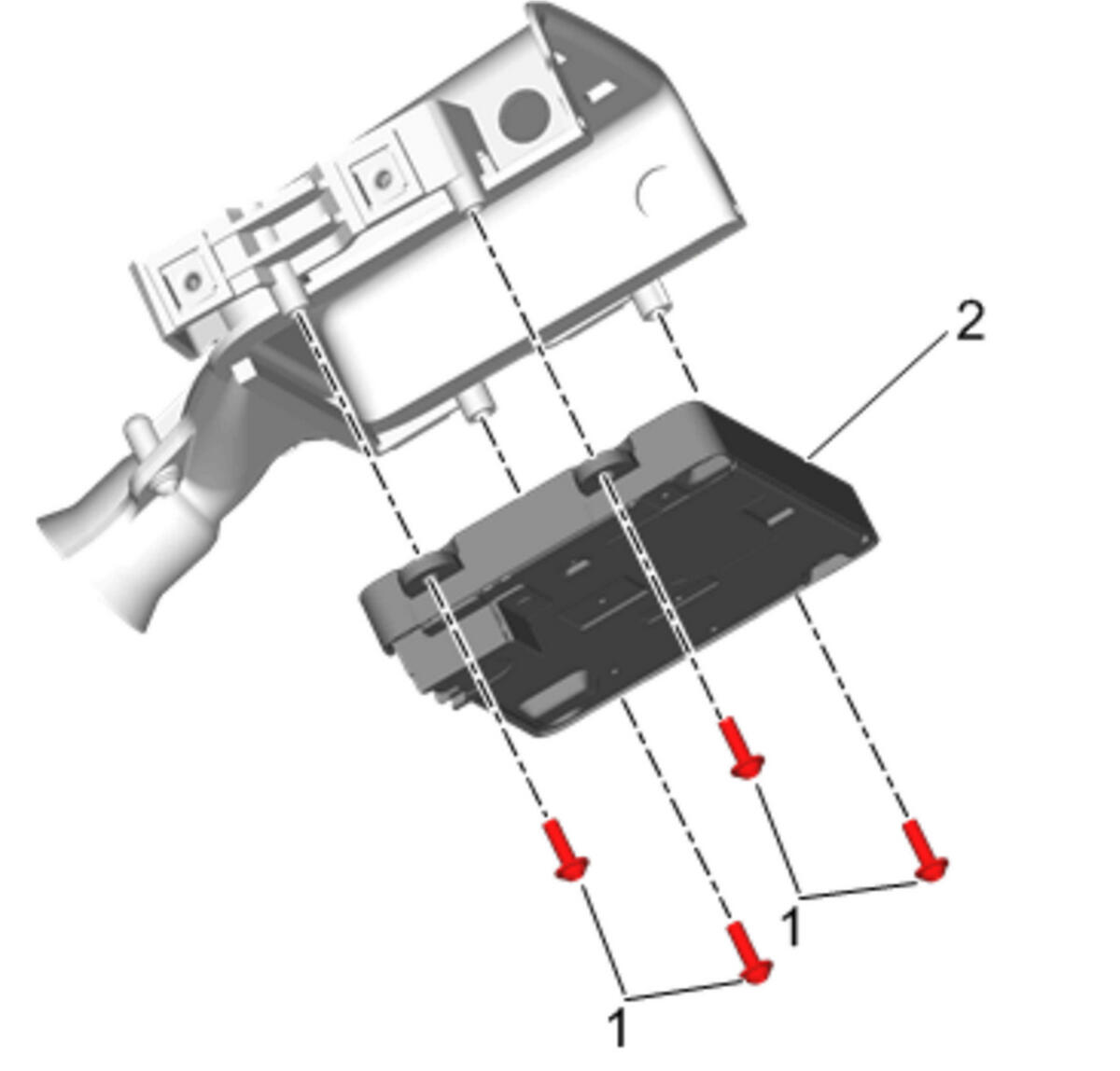

- Wireless Charging System Module Bracket Bolt(1) - Install and tighten[4x]1N.m (9 lb in)

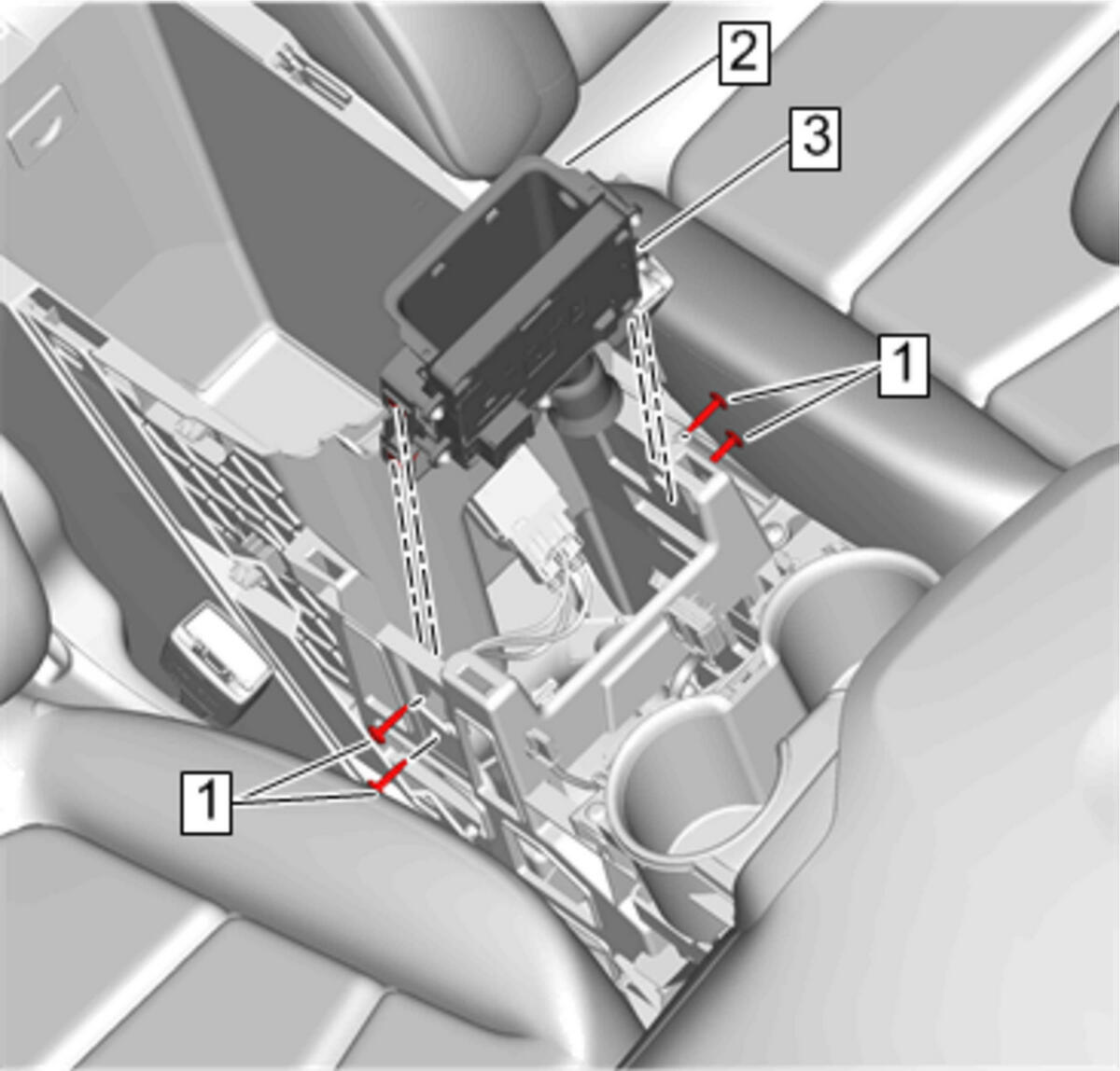

Wireless Charging System Module Bracket(2)and Wireless Charging System Module(3) - Install
- Connect the electrical connector.
- Front Floor Lower Console Bolt(1) - Install and tighten[4x]2.5N.m (22 lb in)

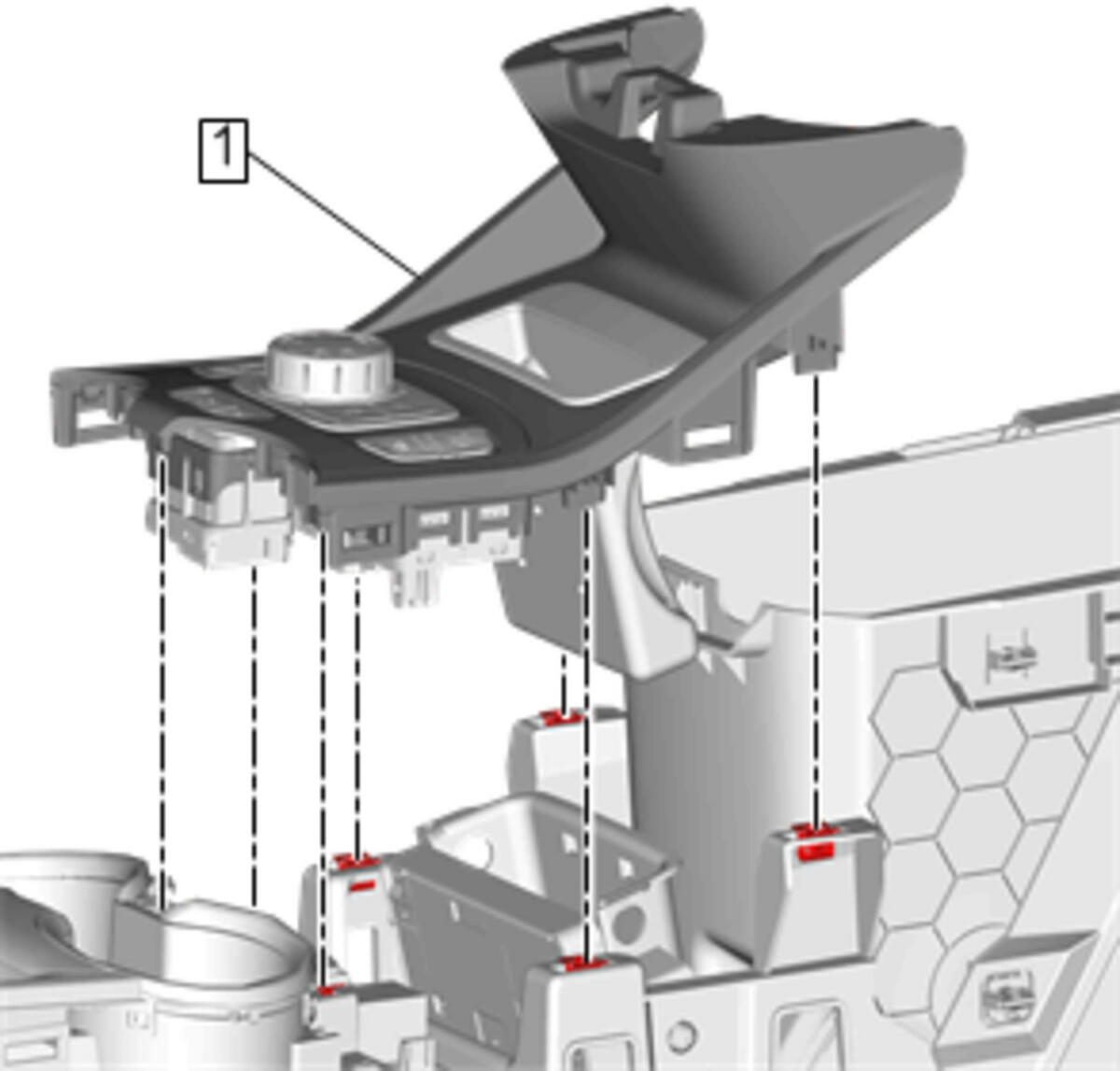

Front Floor Console Trim Plate(1) - Install - Front Floor Console Trim Plate Replacement (Equinox) , or Front Floor Console Trim Plate Replacement (Terrain)
